Lanz 500

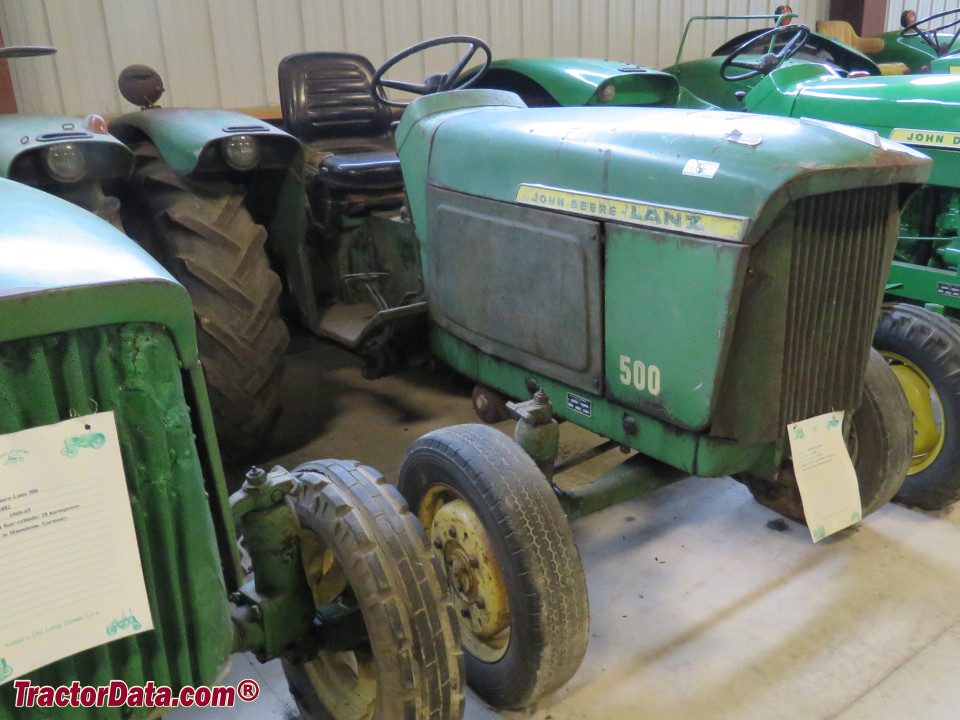

Lanz 500 tractor photo
1960 - 1966
0 Series
Series map:
300
500
700
22.1kw
31.3kw
39.5kw
Production
ManufacturerLanz (a part of John Deere)
Built in Mannheim, Baden-Württemberg, Germany
Lanz 500 Engine
John Deere 2.4L 4-cyl diesel
Fuel tank13.5 gal
51.1 L
Engine details ...
Lanz 500 Power
Engine42 hp
31.3 kW
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Tractor hitch
Rear TypeII/I
Power Take-off (PTO)
Rear PTO Type540/1000
Engine RPM540@2250
 1000@2380
Mid PTOstandard
Mid PTO Type1000
Dimensions & Tires
Wheelbase74.2 inches
188 cm
Weight4550 lbs
2063 kg
Front tire6.00-16
Rear tire11-28
Full dimensions and tires ...
500 Serial Number Location

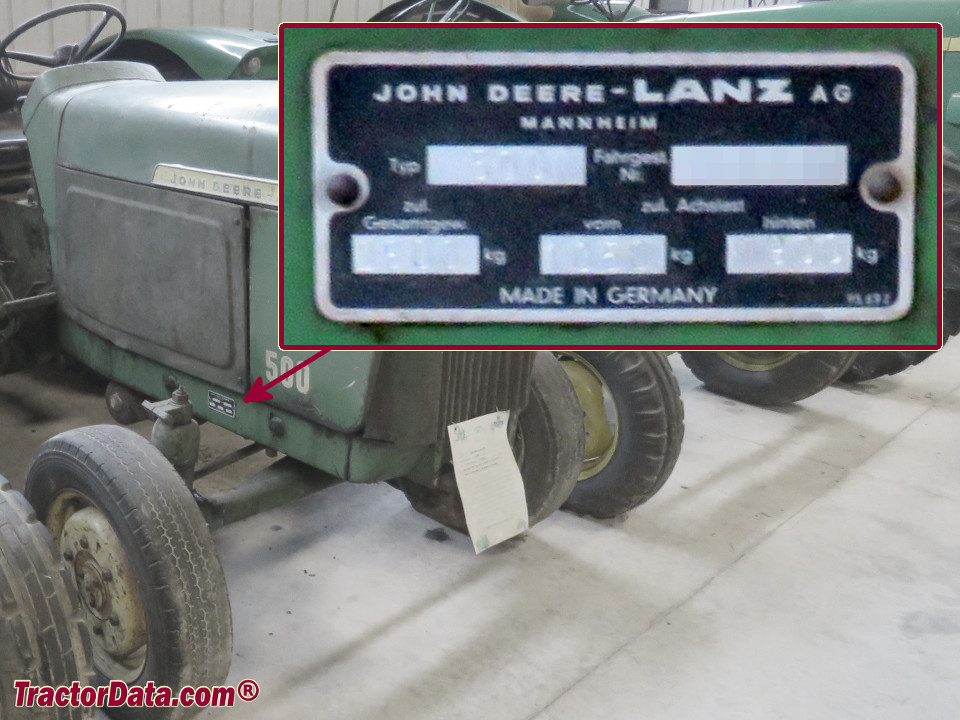

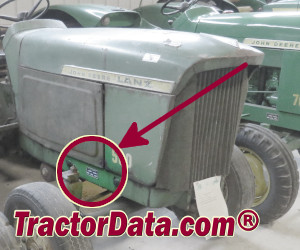

Lanz 500 serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
References
500 references literature
Operator's Manual 500 (16020) published in 1962
