Lanz 700

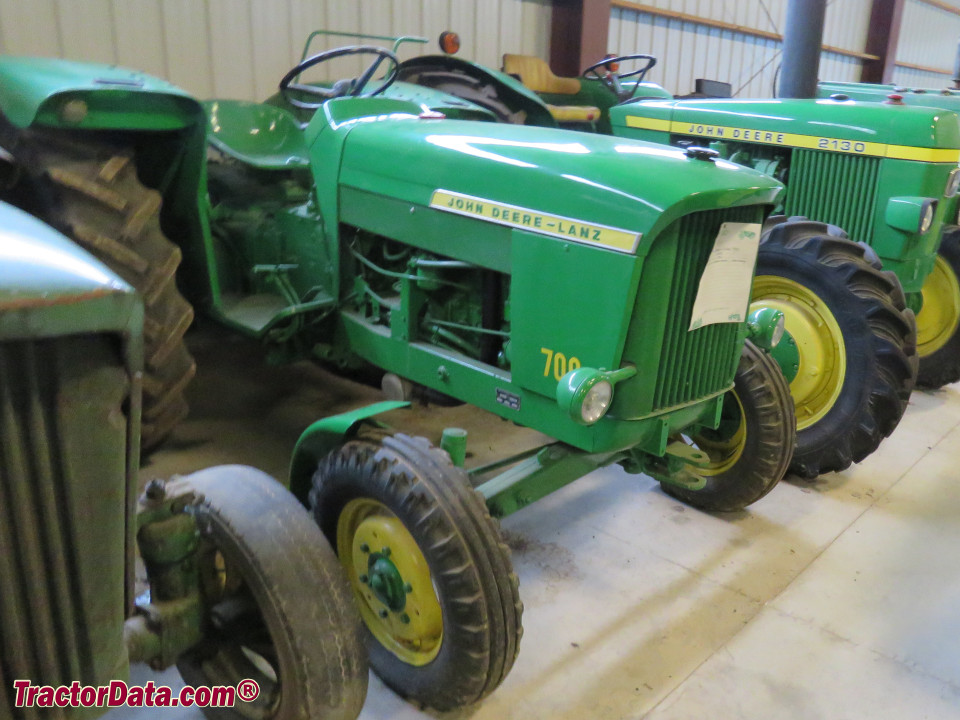

Lanz 700 tractor photo
1962 - 1966
0 Series
Series map:
500
700
31.3kw
39.5kw
Production
ManufacturerLanz (a part of John Deere)
Built in Mannheim, Baden-Württemberg, Germany
Lanz 700 Engine
John Deere 2.7L 4-cyl diesel
Fuel tank18.5 gal
70.0 L
Engine details ...
Lanz 700 Power
Engine53 hp
39.5 kW
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Hydraulics
Typeopen center
Pressure2200 psi
151.7 bar
Pump flow4.2 gpm
15.9 lpm
Tractor hitch
Rear TypeII
Rear lift1764 lbs
800 kg
Power Take-off (PTO)
Rear PTO Type540/1000
Engine RPM540@2250
 1000@2380
Mid PTOstandard
Mid PTO Type1000
Dimensions & Tires
Wheelbase76.8 inches
195 cm
Weight4775 lbs
2165 kg
Front tire6.00-16
Rear tire11-32
Full dimensions and tires ...
700 Serial Number Location

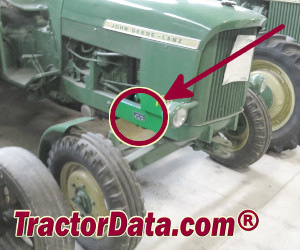

Lanz 700 serial number location

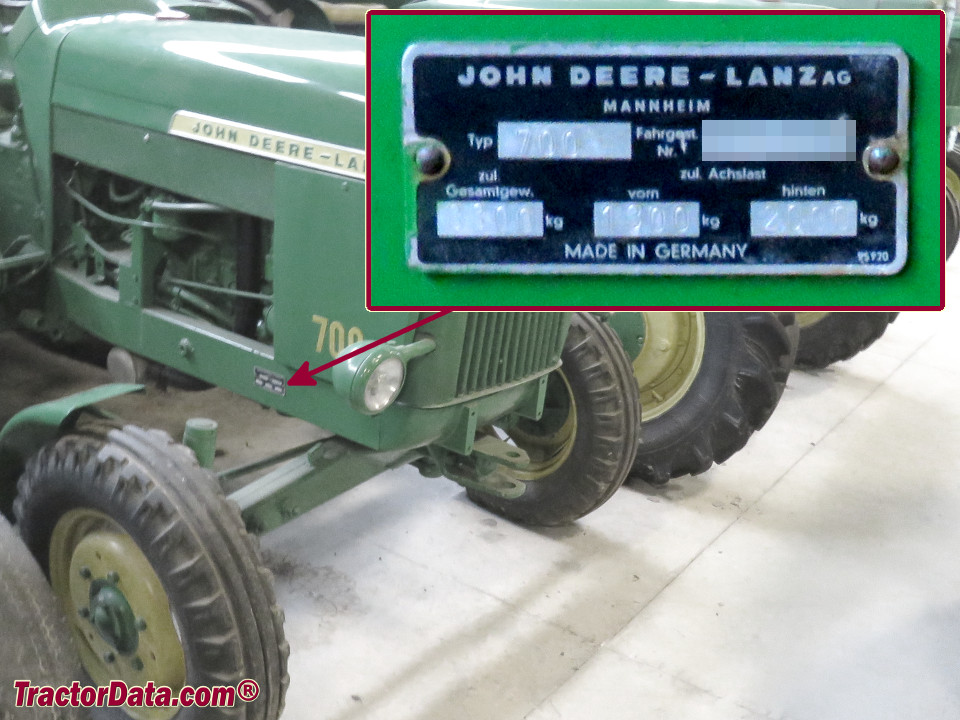

Serial number plate on the right side of the tractor frame, above the front axle.
References
700 references literature
700: Lift even more - lift more safely published by John Deere
Operator's Manual 700 (16034) published in 1963
