Zetor 3321
| | 1997 - 2005 |
| Range 1 Super Series | | Utility tractor |
|
| Production |
| Manufacturer: | Zetor
|
| Type: | Utility tractor
|
| Factory: | Brno, Czech Republic
|
| Zetor 3321 Power |
| Engine: | 46 hp
34.3 kW
|
| PTO (claimed): | 43 hp
32.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Two-post folding ROPS. Cab optional with air-conditioning.
|
| Transmission: | 10-speed
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2600 psi
179.3 bar
|
| Valves: | 1 to 3
|
| Pump flow: | 14 gpm
53.0 lpm
|
| Steering flow: | 4 gpm
15.1 lpm
|
| Tractor hitch |
| Rear Type: | II/I
|
| Control: | position and draft control
|
| Rear lift: | 4300 lbs
1950 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 75
|
| Battery volts: | 12
|
| Page information |
| Last update: | June 28, 2018
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

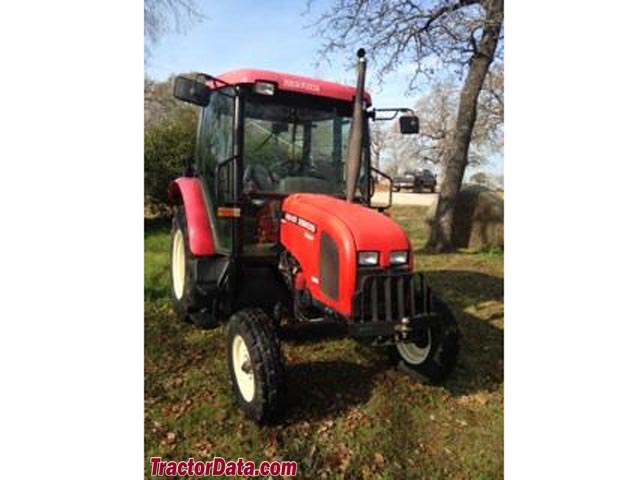

Zetor 3321 photos...
Full dimensions and tires ...
