Tractors > CaseIH > MXU125

CaseIH MXU125 - tests

CaseIH MXU125 tractor photo
2004 - 2006   MXU Maxxum Series
Utility tractor
Series next:CaseIH MXU135
Series back:CaseIH MXU115
more CaseIH MXU125 specifications...


OCED Tractor Test 2259:

Nebraska summary:495

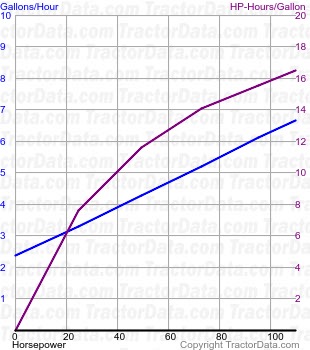

MXU125 fuel use from test 495
Test Date:March 1 - May 1, 2005
Type:Diesel 24-speed 4WD
PTO power (max):121.2 hp [90.4 kW]
PTO fuel use (max):6.6 gal/hour [25.0 l/hour]
PTO power (rated engine speed):109.4 hp [81.6 kW]
PTO fuel use (engine speed):6.7 gal/hour [25.4 l/hour]
PTO power (rated PTO speed):113.6 hp [84.7 kW]
PTO fuel use (PTO speed):6.6 gal/hour [25.0 l/hour]
Drawbar power (max):88.5 hp [66.0 kW]
Drawbar fuel use (max):6.7 gal/hour [25.4 l/hour]
Drawbar pull (max):12,770 lbs [5792 kg]
Max pull gear:1-I-Hi
Test report:PDF file
