CaseIH MXU135 Tests
|
|
| OCED Tractor Test 2204 | |||
| |||
| OCED Tractor Test 2204 | |
| Diesel 16-speed 4WD June 1 - August 1, 2004 Link: OCED Tractor Test 2204 file | |
| PTO performance | |
| Max power | 127.4 hp 95.0 kW |

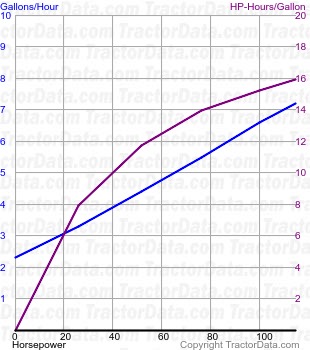

| Fuel use | 7.2 gal/hour 27.3 l/hour |
| Power at rated engine speed | 114.5 hp 85.4 kW |
| Fuel use | 7.2 gal/hour 27.3 l/hour |
| Power at rated PTO speed | 120.1 hp 89.6 kW |
| Fuel use | 7.2 gal/hour 27.3 l/hour |
| Drawbar performance | |
| Max power | 94.4 hp 70.4 kW |
| Fuel use | 7.0 gal/hour 26.5 l/hour |
| Gear 1C used for power test. | |
| Max pull | 11,755 lbs 5332 kg |
| Gear 3A used for pull test. | |
