CaseIH JX1090U Transmission


CaseIH JX1090U tractor photo
2004 - 2008
JXU Maxxima Series
Utility tractor
JX90U
Series:JX1080UJX1090UJX1100U
Farmall 95U
Transmissions overview
12-speed synchronized shuttle
24-speed partial power shift with synchronized shuttle
24-speed partial power shift with power shuttle
20-speed synchronized shuttle with creeper
Transmission
Type:synchronized shuttle
Gears:12 forward and reverse
Clutch:dry disc
Four gears (1-4) in three ranges (I, II, III) with synchronized mechanical shuttle. Separate right-hand gear and range levers. Left-hand shuttle lever on fender.
Speeds

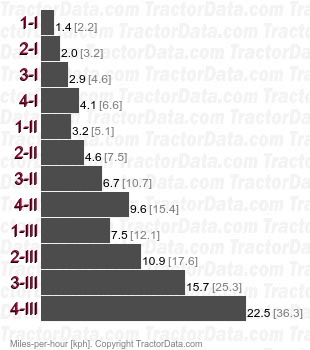

JX1090U  synchronized shuttle speeds
Transmission
Type:partial power shift with synchronized shuttle
Gears:24 forward and 12 reverse
Four gears (1-4) in three ranges (I, II, III) with two-speed (lo/hi) power shift. Push-button power shift located on the gear shift lever and provides a lower downshift for every forward gear. Mechanical synchronized shuttle.
Transmission
Type:partial power shift with power shuttle
Gears:24 forward and reverse
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle. The reverser lever for the power shuttle is located on the steering column.
Transmission
Type:synchronized shuttle with creeper
Gears:20 forward and 12 reverse
The creeper option adds an additional eight forward speeds to the basic 12x12 transmission.
