CaseIH JX1090U Tests

CaseIH JX1090U tractor photo
2004 - 2008
JXU Maxxima Series
Utility tractor
Farmall 95U
OCED Tractor Test 2279

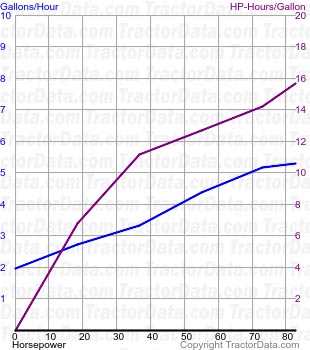

JX1090U fuel use from test 530
OCED Tractor Test 2279
Diesel 12-speed 4WD
March 1 - May 1, 2005
Link: OCED Tractor Test 2279 file
PTO performance
Power at rated engine speed:82.7 hp
61.7 kW
Fuel use:5.3 gal/hour
20.1 l/hour
Power at rated PTO speed:83.3 hp
62.1 kW
Fuel use:5.2 gal/hour
19.7 l/hour
Drawbar performance
Max power:62.1 hp
46.3 kW
Fuel use:5.2 gal/hour
19.7 l/hour
Gear 2-II used for power test.
Max pull:10,050 lbs
4558 kg
Gear 2-I used for pull test.
