CaseIH JX90U Transmission


CaseIH JX90U tractor photo
2002 - 2003
JXU Maxxima Series
Utility tractor
Series:JX80UJX90UJX100U
JX1090U
Transmissions overview
24-speed two-speed power shift
24-speed power shuttle
20-speed syncromesh
Transmission
Type:two-speed power shift
Gears:24 forward and 12 reverse
Two-speed power shift with left-hand synchronized shuttle.

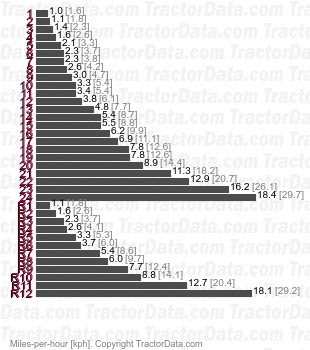

Speeds
JX90U  two-speed power shift speeds
Transmission
Type:power shuttle
Gears:24 forward and reverse
Four gears (1-4) in three ranges (I, II, III) with push-button power shift and power shuttle
Transmission
Type:syncromesh
Gears:20 forward and 12 reverse
