John Deere 4320


John Deere 4320 tractor photo
2005 - 2014
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4120
4320
4520
43.1hp
48.1hp
53.1hp
Production
ManufacturerJohn Deere
Compact Utility tractor
Built in Augusta, Georgia, USA
John Deere 4320 Engine
John Deere 2.4L 4-cyl diesel
Engine details ...
John Deere 4320 Power
Engine (gross)48.1 hp
35.9 kW
Gear PTO (claimed)40.5 hp
30.2 kW
Hydro PTO (claimed)40 hp
29.8 kW
PTO (tested)41.58 hp
31.0 kW
Performance test details ...
Mechanical
Four-wheel drive
Power steering
Differential mechanical wet disc brakes
ROPS
Capacity
Fuel14.5 gal
54.9 L
Gear Hydraulic system10.3 gal
39.0 L
Hydro Hydraulic system9.6 gal
36.3 L
Hydraulics
Typeopen center
Gear Capacity10.3 gal
39.0 L
Hydro Capacity9.6 gal
36.3 L
Pressure2500 psi
172.4 bar
Pump flow12 gpm
45.4 lpm
Total flow17.1 gpm
64.7 lpm
Steering flow5.1 gpm
19.3 lpm
Tractor hitch
Rear TypeI
Rear lift (at 24"/610mm)2,500 lbs
1134 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540
Mid PTOindependent OptOptional
Mid PTO Type2100
Dimensions & Tires
Wheelbase71.5 inches
181 cm
Weight3,850 lbs
1746 kg
Front tire8.00-16
Rear tire13.6-28
Full dimensions and tires ...
John Deere 4320 attachments
72" mid-mount mower deck
front-end loader
backhoe
Attachment details ...
4320 Serial Number Location

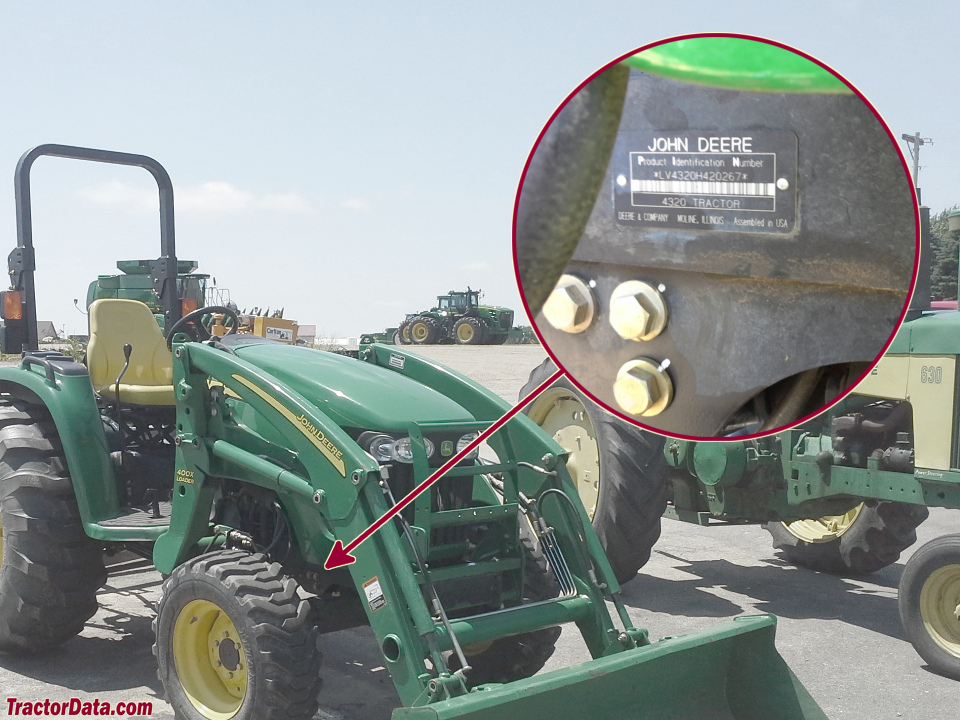

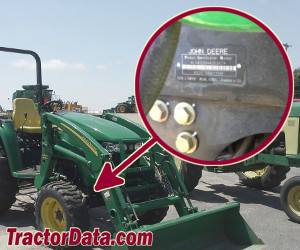

John Deere 4320 serial number location
Serial number plate on the right side of the 4320 tractor frame, above the front axle.
4320 Serial Numbers
2005230001
2006320001
2007420001
2008520001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps75
Battery CCA770
Battery volts12
References
4320 references literature
Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere
4000 Series Compact Utility Tractors published in 2009, by John Deere
4000 Series Compact Utility Tractors published in 2011, by John Deere
TWENTY Series Tractors published in 2010, by John Deere
Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere
