John Deere 4320 Transmission


John Deere 4320 tractor photo
2005 - 2014
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4120
4320
4520
43.1hp
48.1hp
53.1hp
Transmission options
12-speed
hydrostatic
Transmission
TransmissionPowrReverser
Gears12 forward and reverse
Oil capacity41.2 qts
39.0 L
Speeds
With 13.6-28 rear tires.
4320 PowrReverser  speeds
Transmission
TransmissioneHydro
Typehydrostatic
Gearsinfinite 3-range forward and reverse
Oil capacity38.4 qts
36.3 L
Speeds
With 16.3-28 rear tires.

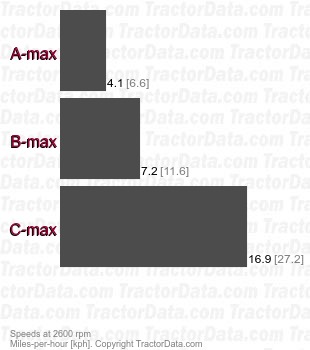

4320 eHydro hydrostatic speeds
