John Deere 9220 Tests

John Deere 9220 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
OCED Tractor Test 1811

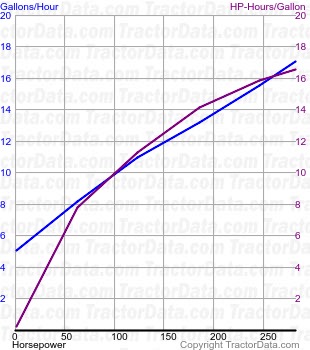

9220 fuel use from test 377
OCED Tractor Test 1811
Diesel 18-speed 4WD
September 20 - 27, 2002
Link: OCED Tractor Test 1811 file
PTO performance
Max power:334.09 hp
249.1 kW
Fuel use:18.4 gal/hour
69.6 l/hour
Power at rated engine speed:282.16 hp
210.4 kW
Fuel use:17.0 gal/hour
64.3 l/hour
Power at rated PTO speed:317.95 hp
237.1 kW
Fuel use:17.6 gal/hour
66.6 l/hour
Drawbar performance
Max power:264.34 hp
197.1 kW
Fuel use:17.0 gal/hour
64.3 l/hour
Gear 6 used for power test.
Max pull:35,831 lbs
16252 kg
Gear 1 used for pull test.
