Tractors > John Deere > 9120

John Deere 9120 Tests



John Deere 9120 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
Series map:
9120
9220
280.0hp
325.0hp
OCED Tractor Test 1810

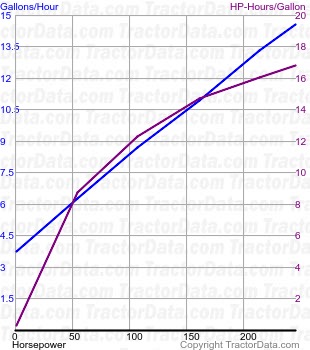

9120 fuel use from test 376
OCED Tractor Test 1810
Diesel 18-speed 4WD
September 23 - 27, 2002
Link: OCED Tractor Test 1810 file
PTO performance
Power at rated engine speed244.57 hp
182.4 kW
Fuel use14.6 gal/hour
55.3 l/hour
Power at rated PTO speed262.97 hp
196.1 kW
Fuel use14.4 gal/hour
54.5 l/hour
Drawbar performance
Max power226.02 hp
168.5 kW
Fuel use14.5 gal/hour
54.9 l/hour
Gear 7 used for power test.
Max pull35,211 lbs
15971 kg
Gear 1 used for pull test.
