CaseIH 8940

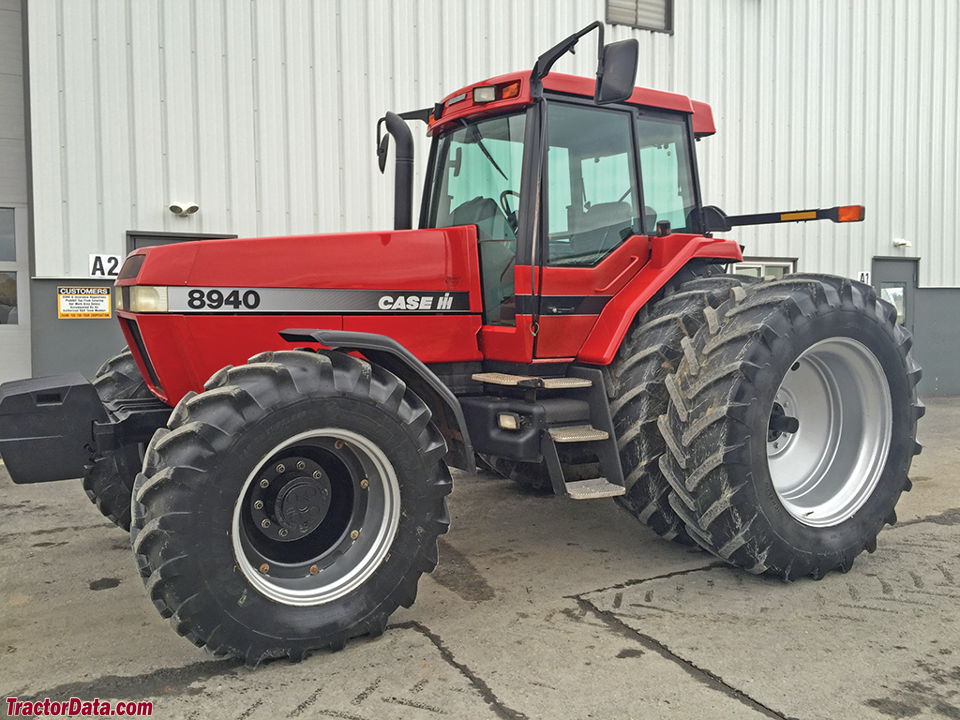

CaseIH 8940 tractor photo
1997 - 1998
Magnum 8900 Series
Row-Crop tractor
Series map:
8930
8940
8950
200.0hp*
227.8hp*
250.0hp*
*Estimated engine power for comparison only.
Production
ManufacturerCaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $105,000 in 1998
CaseIH 8940 Engine
CDC 8.3L 6-cyl diesel
Engine details ...
CaseIH 8940 Transmissions
18-speed full power shift
24-speed creeper
Transmission details ...
CaseIH 8940 Power
PTO (claimed)205 hp
152.9 kW
Drawbar (tested)176.35 hp
131.5 kW
PTO (tested)230.83 hp
172.1 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectric rear
Power steering
Differential hydraulic wet disc brakes
Cab standard with air-conditioning.
Photos
CaseIH 8940
CaseIH 8940 photos...
Capacity
Fuel117 gal
442.8 L
 104 galOptOptional
393.6 L
Hydraulic system45.5 gal
172.2 L
Hydraulics
Typeclosed center pressure-flow compensated
Capacity45.5 gal
172.2 L
Pressure2200 psi
151.7 bar
Valves2 to 4
Pump flow29 gpm
109.8 lpm
SCV flow27 gpm
102.2 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlelectronic lower-link draft sensing
Rear lift13750 lbs
6237 kg
 16000 lbsOptOptional
7257 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet disc
Rear PTO Type1000 (1.75)
Dimensions & Tires
Wheelbase118.3 inches
300 cm
Weight15825 to 18170 pounds
Front tire14L-16.1
Rear tire18.4R-42
Full dimensions and tires ...
CaseIH 8940 attachments
front-end loader
Attachment details ...
8940 Serial Numbers
Location:Serial number plate on the dashboard console inside the tractor cab, near the floor.
1997JJA0072001
1998JJA0083000
1999JJA0097438

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps110
Charging volts12
Batteries2
Battery CCA950
Battery volts12
References
8940 references literature
Introducing The New 8900 Series Magnum Tractors published in 1996, by CaseIH
8900 Series Tractors published in 1997, by CaseIH
