Tractors > CaseIH > MX240 Magnum

CaseIH MX240 Magnum

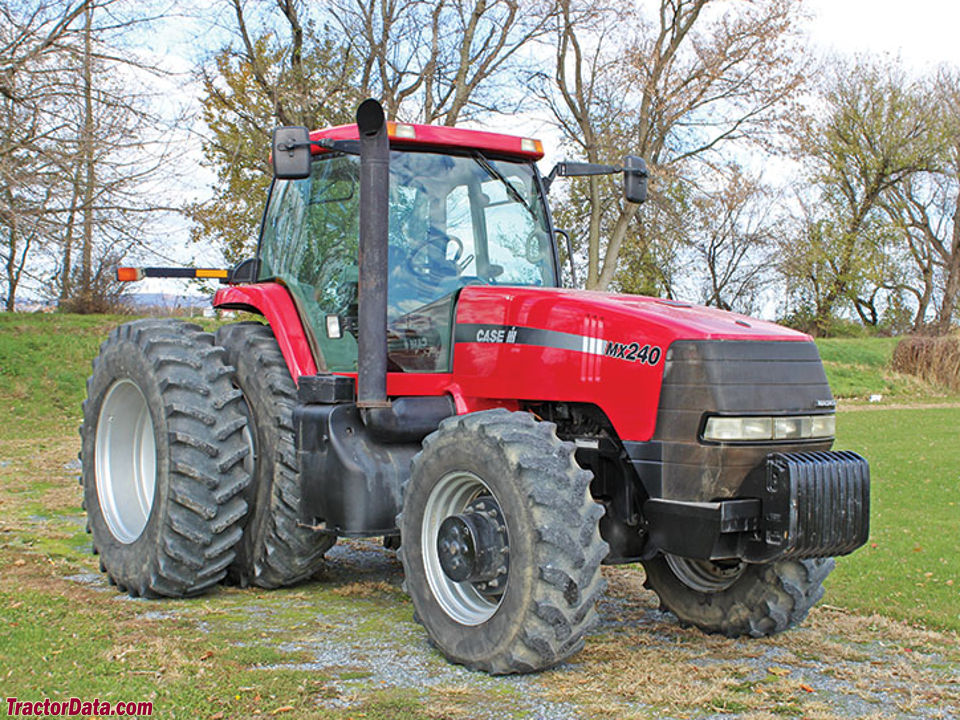

CaseIH MX240 Magnum tractor photo
1999 - 2002
Magnum Series
Row-Crop tractor
Series map:
MX220
MX240
MX270
205.6hp*
227.8hp*
261.1hp*
*Estimated engine power for comparison only.
Production
ManufacturerCaseIH
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price$130,000
CaseIH MX240 Engine
CDC 8.3L 6-cyl diesel
Engine details ...
CaseIH MX240 Transmissions
18-speed full power shift
24-speed creeper
Transmission details ...
CaseIH MX240 Power
PTO (claimed)205 hp
152.9 kW
Drawbar (tested)178.57 hp
133.2 kW
PTO (tested)235.15 hp
175.4 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesplanetary
Differential lockelectro-hydraulic rear
Power steering
Differential hydraulic wet disc brakes
Surveyor Cab standard with air-conditioning.
Photos
CaseIH MX240
CaseIH MX240 photos...
Capacity
Fuel160 gal
605.6 L
Hydraulic system45.5 gal
172.2 L
Hydraulics
Typeclosed center PFC
Capacity45.5 gal
172.2 L
Pressure2500 psi
172.4 bar
Valves3 to 5
Pump flow30 gpm
113.6 lpm
 44 gpmOptOptional
166.5 lpm
SCV flow27 gpm
102.2 lpm
 40 gpmOptOptional
151.4 lpm
Tractor hitch
Rear TypeIII/IIIN
Controlposition and draft control
Rear lift13000 lbs
5896 kg
 16000 lbsOptOptional
7257 kg
Front HitchII OptOptional
Front lift (at 24"/610mm)5500 lbs
2494 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000 (1.75)
Engine RPM1000@1974
Dimensions & Tires
Wheelbase118.3 inches
300 cm
Weight20200 to 20745 pounds
Front tire16.9R30
Rear tire20.8R42
Full dimensions and tires ...
MX240 Serial Number Location
CaseIH MX240 serial number location
Serial number tag on the right side of the tractor frame, above the front axle.
MX240 Serial Numbers
1999JJA0097438
2000JJA0105000
2001JJA0108800
2002JJA0115301

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps110
 135 OptOptional
Charging volts12
Batteries2
Battery CCA1000
Battery volts12
Battery Group31
References
MX240 Magnum references literature
MX Series Magnum Tractors published in 1998, by CaseIH
Operator's Manual MX Series Magnum Tractors (Rac 6-5341) published in 1999
MX Series Magnum Sales Support Manual published in 1998, by Case IH*
*Publication contains known errors.
