| | 1997 - 1998 |
| Magnum 8900 Series | | Row-Crop tractor |
|
Series map:
8930
8940
8950
200.0hp
227.8hp
250.0hp
| Transmissions overview |
| 18-speed full power shift |
| 24-speed creeper |

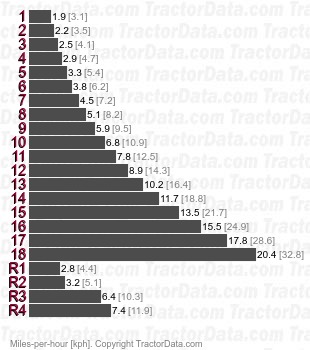

| Transmission |
| Type | full power shift
|
| Gears | 18 forward and 4 reverse
|
| Clutch | hydraulic wet disc
|
| Speeds |
|
| Shift Pattern |
 |

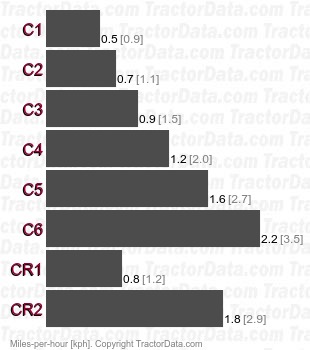

| Transmission |
| Type | creeper
|
| Gears | 24 forward and 6 reverse
|
| Speeds |
|
