New Holland 8670 Transmission


New Holland 8670 tractor photo
1993 - 2000
70 Genesis Series
Row-Crop tractor
8670
Series:86708770
8670A

Note: the New Holland model 8670 is the same as the Ford 8670. The following data is from the 8670 listing.
Transmissions overview
16-speed full power shift
32-speed creeper
Transmission
Type:full power shift
Gears:16 forward and 9 reverse
Speeds
With 18.4-42 rear tires.

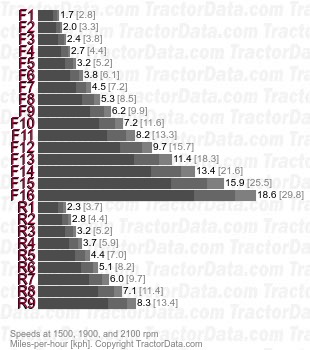

8670  full power shift speeds
Transmission
Type:creeper
Gears:32 forward and 18 reverse
Creeper range added to standard power shift transmission. With tractor in neutral and inching pedal pressed, toggle button is used to enter/exit creeper range.
