    Farmall 200 - tests

    Farmall 200 tractor photo I&T Manual: IH 100, 130, 140, 200, 230, 240, 404, 2404, 330, 340, 504, 2504, B-275, B-414, 354, 364, 384, 424, 444, 2424, 2444
    I&T Shop Manual
    1954 - 1956
    Previous model:Farmall Super C
    Next model:Farmall 230
    Larger:Farmall 300
    Smaller:Farmall 100
    more Farmall 200 specifications...






    Nebraska Tractor Test 536:

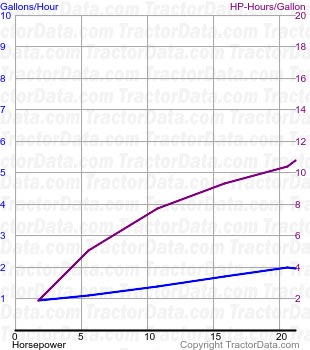

    200 fuel use from test 536
    Test Date:April 18 - 29, 1955
    Type:Gasoline 4-speed 2WD
    Belt power (max):24.11 hp [18.0 kW]
    Belt fuel use (max):2.4 gal/hour [9.1 l/hour]
    Drawbar power (max):20.92 hp [15.6 kW]
    Drawbar pull (max):3,166 lbs [1436 kg]
    Max pull gear:1
    Test report:PDF file
