Farmall 300 Tests



Farmall 300 tractor photo
1954 - 1956
Row-Crop tractor
Series map:
200
300
400
26.8hp*
42.4hp*
56.7hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 538: gasoline 2WD
NTTL 573: LP-gas TA 2WD
Nebraska Tractor Test 538

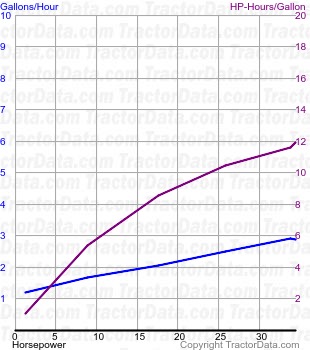

300 fuel use from test 538
Nebraska Tractor Test 538
Gasoline 2WD
April 29 - May 2, 1955
Link: Nebraska Tractor Test 538 file
Belt power (max)38.16 hp
28.5 kW
Belt fuel use (max)3.4 gal/hour
12.9 l/hour
Drawbar performance
Max power33.73 hp
25.2 kW
Gear 2 used for power test.
Max pull5,650 lbs
2562 kg
Gear 1-TA used for pull test.
Nebraska Tractor Test 573

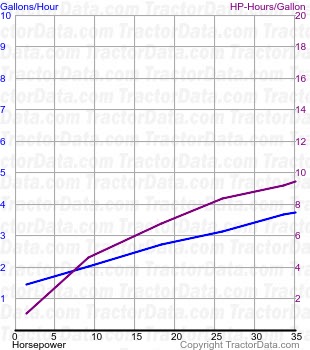

300 fuel use from test 573
Nebraska Tractor Test 573
LP-gas TA 2WD
May 9 - June 4, 1956
Link: Nebraska Tractor Test 573 file
Belt power (max)38.42 hp
28.6 kW
Belt fuel use (max)4.4 gal/hour
16.7 l/hour
Drawbar performance
Max power35.43 hp
26.4 kW
Gear 3 used for power test.
Max pull5576 lbs
2529 kg
Gear 1-TA used for pull test.
