Tractors > Farmall > 230

Farmall 230 Tests



Farmall 230 tractor photo
1956 - 1958
Row-Crop tractor
Series map:
130
230
24.7hp*
27.7hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 616

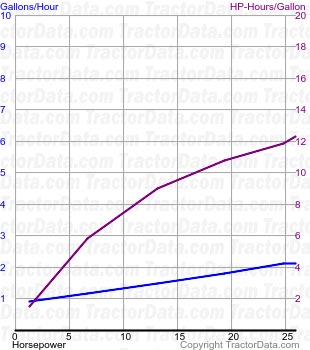

230 fuel use from test 616
Nebraska Tractor Test 616
Gasoline 4-speed 2WD
April 25, 1957 - ,
Link: Nebraska Tractor Test 616 file
Belt power (max)28.06 hp
20.9 kW
Belt fuel use (max)2.4 gal/hour
9.1 l/hour
Drawbar performance
Max power25.00 hp
18.6 kW
Gear 2 used for power test.
Max pull3,574 lbs
1621 kg
Gear 1 used for pull test.
