Tractors > Farmall > 200

Farmall 200



Farmall 200 tractor photo
1954 - 1956
Row-Crop tractor
Series map:
100
200
300
22.4hp
26.8hp
42.4hp
Production
ManufacturerFarmall (a part of International Harvester)
Row-Crop tractor
Original price was $1,970 in 1956
Farmall 200 Engine
International Harvester 2.0L 4-cyl gasoline
Engine details ...
Farmall 200 Transmission
4-speed sliding gear
Transmission details ...
Farmall 200 Power
Drawbar (tested)20.92 hp
15.6 kW
Belt (tested)24.11 hp
18.0 kW
Performance test details ...
Mechanical
Two-wheel drive
Steeringmanual
Differential mechanical dry disc brakes
Open operator station.
Photos
Tricycle-front Farmall 200
Farmall 200 photos...
Power Take-off (PTO)
Rear RPM540
Dimensions & Tires
Wheelbase82.25 inches
208 cm
Weight3,541 lbs
1606 kg
Front tire5.00-15
Rear tire10-36
Full dimensions and tires ...
200 Serial Numbers
1954501
19551032
195610904

FAQ: How to read a serial number table.

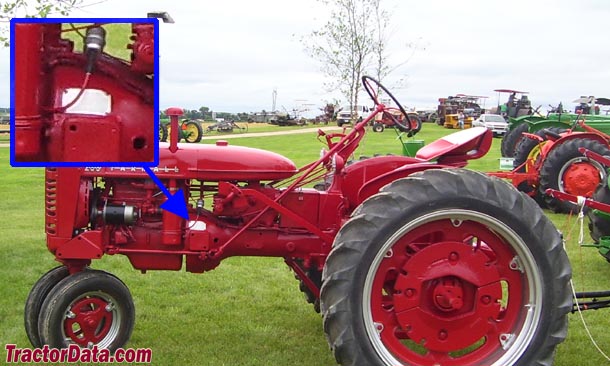

200 Serial Location
Farmall 200 serial number location
Clutch housing, right side
References
200 references literature
Hydra-Creeper Hydraulic Drive published by International Harvester
Operator's Manual Hydra-Creeper Attachment
