Ford 3000 Engine


Ford 3000 tractor photo
1965 - 1975
Utility tractor
Series map:
2000
3000
36.0hp
46.7hp
Engines overview
Ford 2.6L 3-cyl gasoline
Ford 2.9L 3-cyl diesel
Engine Detail
Ford
gasoline
3-cylinder
liquid-cooled
Displacement158 ci
2.6 L
Bore/Stroke4.20x3.80 inches
107 x 97 mm
Power46.7 hp
34.8 kW
Air cleanerdry
Compression8:1
Rated RPM2100
Torque123 lb-ft
166.8 Nm
Torque RPM1350
Firing order1-2-3
Starter volts12
Coolant capacity13.8 qts
13.1 L
Sparkplug gap0.023-0.027 inches
0.584 mm
Point gap0.022-0.028 inches
0.559 mm
Engine Oil

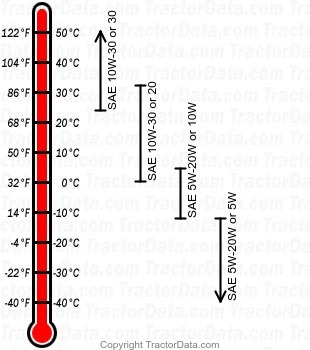

3000 gasoline engine oil chart
Oil capacity8 qts
7.6 L

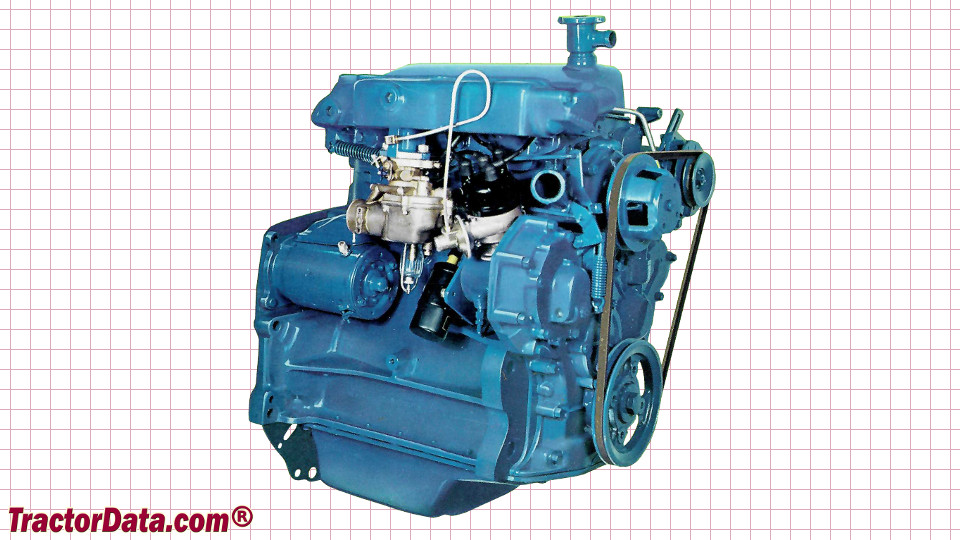

Ford 3000 Engine
Ford 3000 engine image
Engine Detail
Ford
diesel
3-cylinder
liquid-cooled
Displacement175 ci
2.9 L
Bore/Stroke4.20x4.20 inches
107 x 107 mm
Power44.1 hp
32.9 kW
Air cleaneroil bath
Compression16.5:1
Rated RPM2000
Torque125.7 lb-ft
170.4 Nm
Torque RPM1150
Firing order1-2-3
Engine Oil

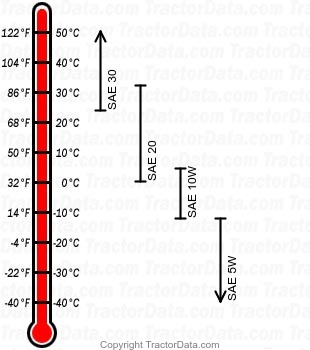

3000 diesel engine oil chart
Oil capacity8 qts
7.6 L

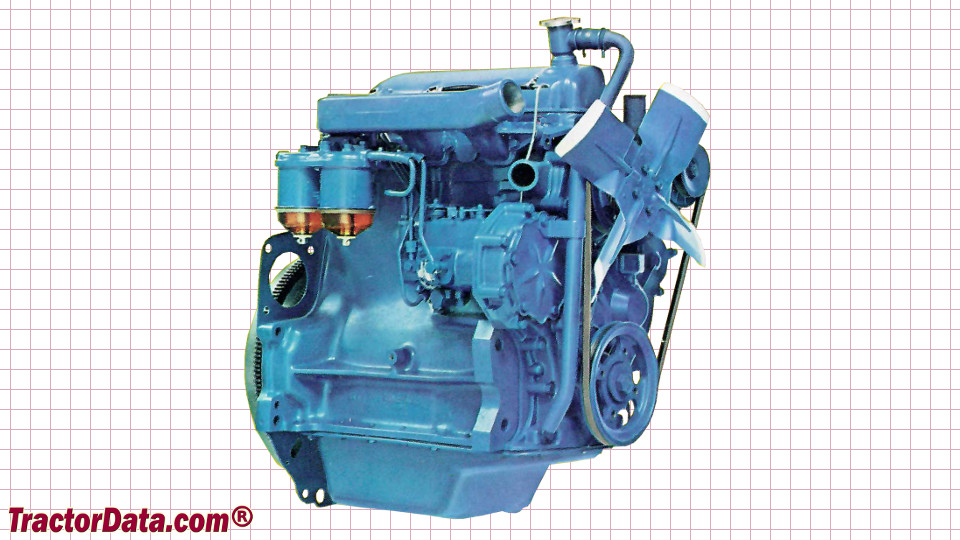

Ford 3000 Engine
Ford 3000 engine image
