Ford 3000 Transmission


Ford 3000 tractor photo
1965 - 1975
Utility tractor
Series map:
2000
3000
36.0hp
46.7hp
Transmissions overview
10-speed full power shift
12-speed
8-speed
6-speed
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Oil capacity11 qts
10.4 L
Oil type
ESN-M2C41-A
M2C41
Transmission can shifted between gears while moving.
Speeds

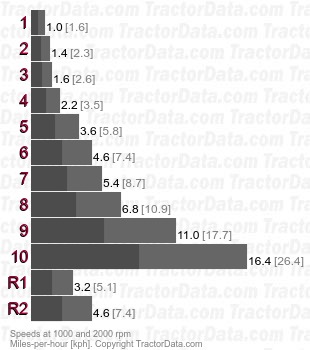

3000 Select-O-Speed full power shift speeds
Transmission
Transmission4-speed with over/under
Gears12 forward and 3 reverse
Oil capacity7 qts
6.6 L
Oil type
ESN-M2C77A
M-4864-A
Four-speed transmission with over/under lever located to the left of the shift lever. Tractor must be stopped before shifting. Also available as basic four-speed. This trasmission option was dropped in 1970 and replaced with the six-speed.
Speeds
3000 4-speed with over/under  speeds
Transmission
Gears8 forward and 2 reverse
Oil capacity13.2 qts
12.5 L
Oil type
ESN-M2C77A
M-4864-A
Four-speed gear selector on left, high-low range select lever on right. Tractor must be stopped before shifting.
Speeds
3000   speeds
Shift Pattern
Ford 3000 transmission controls
Transmission
Gears6 forward and 2 reverse
The six-speed transmission was first offered on the Ford 3000 in 1970, replacing the four-speed.

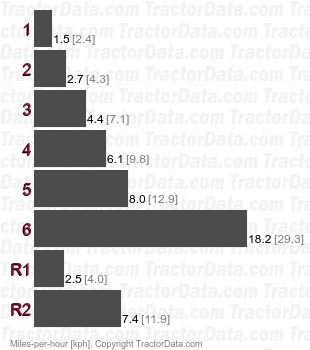

Speeds
3000   speeds
