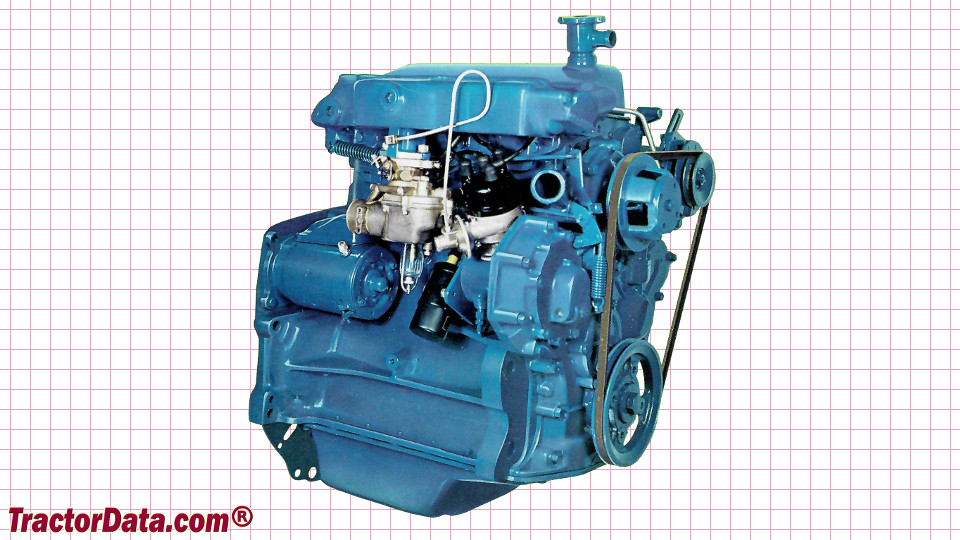

Ford 2000 Engine
|
|
| Engine options | |
| Ford 2.6L 3-cyl gasoline | |
| Ford 2.6L 3-cyl diesel |
| Engine Detail | |
| Ford | |
| gasoline | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 158 ci 2.6 L |
| Bore/Stroke | 4.20x3.80 inches 107 x 97 mm |
| Power | 36 hp 26.8 kW |
| Air cleaner | paper element |
| Compression | 8:1 |
| Rated RPM | 1900 (early) |
| 2000 (late) | |
| Torque | 102.7 lb-ft 139.3 Nm |
| Torque RPM | 1350 |
| Firing order | 1-2-3 |
| Starter volts | 12 |
| Coolant capacity | 13.2 qts 12.5 L |
| Sparkplug | Autolite AG5 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.022-0.028 inches 0.559 mm |

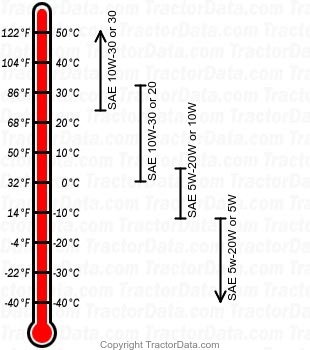

| Engine Oil | |
| |
| Oil capacity | 8 qts*The operator's manual lists 8 US quarts. Depending on year, sales literature lists between 6 and 8 quarts. 7.6 L |
| Ford 2000 Engine | |
 |
| Engine Detail | |
| Ford | |
| diesel | |
| 3-cylinder | |
| liquid-cooled | |
| Displacement | 158 ci 2.6 L |
| Bore/Stroke | 4.20x3.80 inches 107 x 97 mm |
| Power | 39 hp 29.1 kW |
| Compression | 16.5:1 |
| Rated RPM | 2000 |
| Torque | 105.6 lb-ft 143.2 Nm |
| Torque RPM | 1200 |
| Firing order | 1-2-3 |
| Starter volts | 12 |
| Coolant capacity | 13.2 qts 12.5 L |

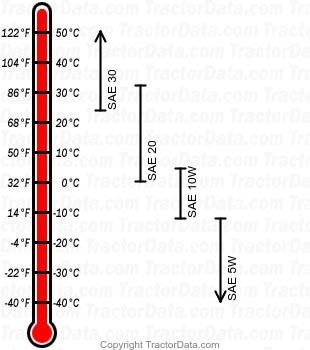

| Engine Oil | |
| |
| Oil capacity | 8 qts*The operator's manual lists 8 US quarts. Depending on year, sales literature lists between 6 and 8 quarts. 7.6 L |
