Ford 3000 Tests


Ford 3000 tractor photo
1965 - 1975
Utility tractor
Series map:
2000
3000
36.0hp
46.7hp
Nebraska Tractor Test 881

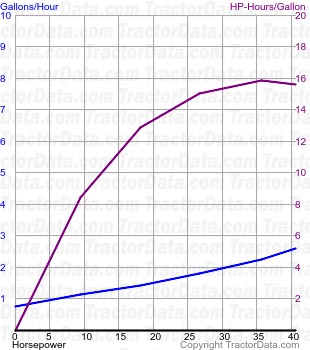

3000 fuel use from test 881
Nebraska Tractor Test 881
Diesel 8-speed 2WD
March 29 - April 6, 1965
Link: Nebraska Tractor Test 881 file
PTO performance
Power at rated engine speed39.20 hp
29.2 kW
Fuel use2.4 gal/hour
9.1 l/hour
Power at rated PTO speed37.34 hp
27.8 kW
Fuel use2.2 gal/hour
8.3 l/hour
Drawbar performance
Max power34.88 hp
26.0 kW
Fuel use2.5 gal/hour
9.5 l/hour
Gear 4 used for power test.
Max pull5,106 lbs
2316 kg
Gear 2 used for pull test.
Nebraska Tractor Test 882

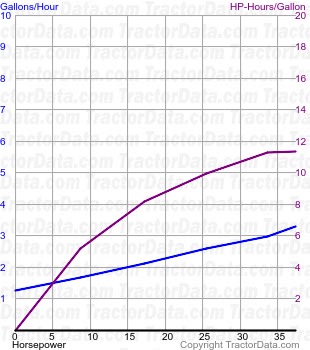

3000 fuel use from test 882
Nebraska Tractor Test 882
Diesel Select-O-Speed 2WD
March 24 - April 9, 1965
Link: Nebraska Tractor Test 882 file
PTO performance
Power at rated engine speed38.08 hp
28.4 kW
Fuel use2.5 gal/hour
9.5 l/hour
Power at rated PTO speed37.85 hp
28.2 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power30.60 hp
22.8 kW
Fuel use2.5 gal/hour
9.5 l/hour
Gear 5 used for power test.
Max pull5,016 lbs
2275 kg
Gear 4 used for pull test.
Nebraska Tractor Test 883

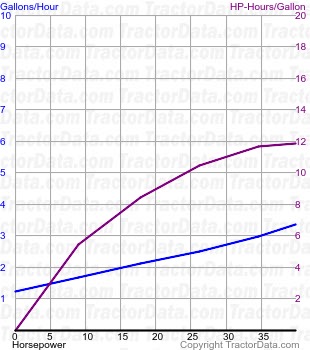

3000 fuel use from test 883
Nebraska Tractor Test 883
Diesel 12-speed 2WD
March 27 - April 7, 1965
Link: Nebraska Tractor Test 883 file
PTO performance
Power at rated engine speed39.46 hp
29.4 kW
Fuel use2.5 gal/hour
9.5 l/hour
Power at rated PTO speed31.81 hp
23.7 kW
Fuel use1.9 gal/hour
7.2 l/hour
Drawbar performance
Max power35.43 hp
26.4 kW
Fuel use2.6 gal/hour
9.8 l/hour
Gear 2D used for power test.
Max pull4,629 lbs
2099 kg
Gear 1U used for pull test.
Nebraska Tractor Test 885

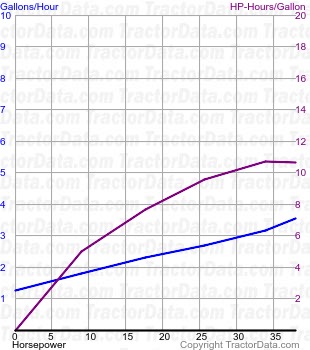

3000 fuel use from test 885
Nebraska Tractor Test 885
Gasoline Select-O-Speed 2WD
April 8 - 26, 1965
Link: Nebraska Tractor Test 885 file
PTO performance
Power at rated engine speed36.49 hp
27.2 kW
Fuel use3.3 gal/hour
12.5 l/hour
Power at rated PTO speed35.30 hp
26.3 kW
Fuel use3.2 gal/hour
12.1 l/hour
Drawbar performance
Max power29.76 hp
22.2 kW
Fuel use3.1 gal/hour
11.7 l/hour
Gear 6 used for power test.
Max pull5,019 lbs
2276 kg
Gear 3 used for pull test.
Nebraska Tractor Test 888

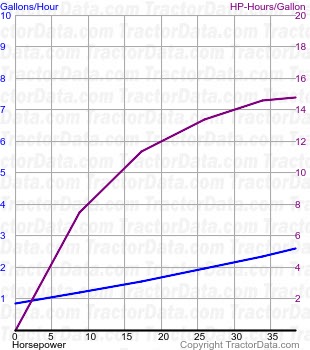

3000 fuel use from test 888
Nebraska Tractor Test 888
Gasoline 8-speed 2WD
April 20 - 27, 1965
Link: Nebraska Tractor Test 888 file
PTO performance
Power at rated engine speed37.84 hp
28.2 kW
Fuel use3.3 gal/hour
12.5 l/hour
Power at rated PTO speed34.62 hp
25.8 kW
Fuel use2.9 gal/hour
11.0 l/hour
Drawbar performance
Max power32.52 hp
24.3 kW
Fuel use3.3 gal/hour
12.5 l/hour
Gear 4 used for power test.
Max pull5,059 lbs
2294 kg
Gear 2 used for pull test.
Nebraska Tractor Test 889

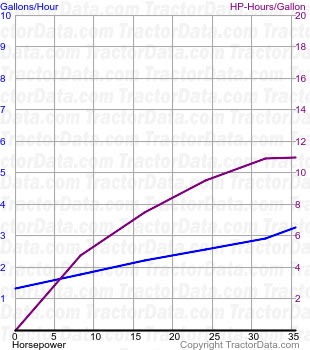

3000 fuel use from test 889
Nebraska Tractor Test 889
Gasoline 12-speed 2WD
April 20 - May 6, 1965
Link: Nebraska Tractor Test 889 file
PTO performance
Power at rated engine speed39.17 hp
29.2 kW
Fuel use3.3 gal/hour
12.5 l/hour
Power at rated PTO speed30.64 hp
22.8 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power33.04 hp
24.6 kW
Fuel use3.3 gal/hour
12.5 l/hour
Gear 2D used for power test.
Max pull4,622 lbs
2096 kg
Gear 1U used for pull test.
Nebraska Tractor Test 1051

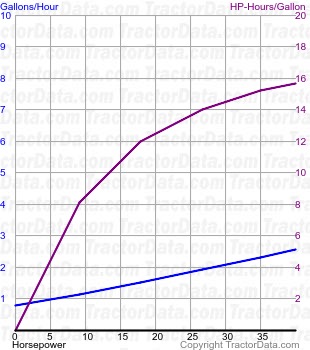

3000 fuel use from test 1051
Nebraska Tractor Test 1051
Gasoline 6-speed 2WD
September 29 - October 5, 1970
Link: Nebraska Tractor Test 1051 file
PTO performance
Power at rated engine speed38.33 hp
28.6 kW
Fuel use3.5 gal/hour
13.2 l/hour
Power at rated PTO speed34.34 hp
25.6 kW
Fuel use3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power31.15 hp
23.2 kW
Fuel use3.4 gal/hour
12.9 l/hour
Gear 3 used for power test.
Max pull5,109 lbs
2317 kg
Gear 1 used for pull test.
Nebraska Tractor Test 1052

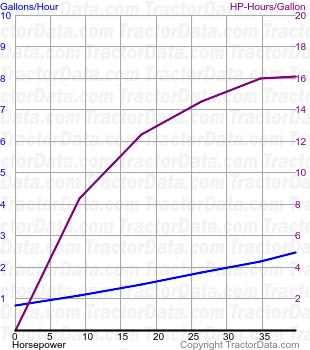

3000 fuel use from test 1052
Nebraska Tractor Test 1052
Diesel 6-speed 2WD
September 28 - October 14, 1970
Link: Nebraska Tractor Test 1052 file
PTO performance
Power at rated engine speed40.63 hp
30.3 kW
Fuel use2.6 gal/hour
9.8 l/hour
Power at rated PTO speed39.07 hp
29.1 kW
Fuel use2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power34.96 hp
26.1 kW
Fuel use2.6 gal/hour
9.8 l/hour
Gear 3 used for power test.
Max pull5,208 lbs
2362 kg
Gear 2 used for pull test.
