Ford TW-30 - transmission

Ford TW-30 tractor photo
1979 - 1983   TW Series
Row-Crop tractor
Series back:Ford TW-20
more Ford TW-30 specifications...






Transmission:

Transmission:Dual Power
Gears:16 forward and 4 reverse
Clutch:356mm cerametallic disc
Oil capacity:92 qts [87.1 L]
The left lever selects high, low, or park. The right lever selects between four forward gears and reverse. The tractor must be stopped before shifting gear. The Dual Power pedal is located to the right of the clutch pedal. Pushing heel-down on the Dual Power pedal engages an underdrive. The Dual Power mode may be shifted on the move.
Speeds:18.4x38 rear tires.

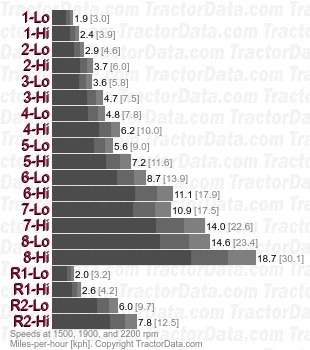

TW-30 Dual Power  speeds
