Tractors > Allis Chalmers > 8050

Allis Chalmers 8050

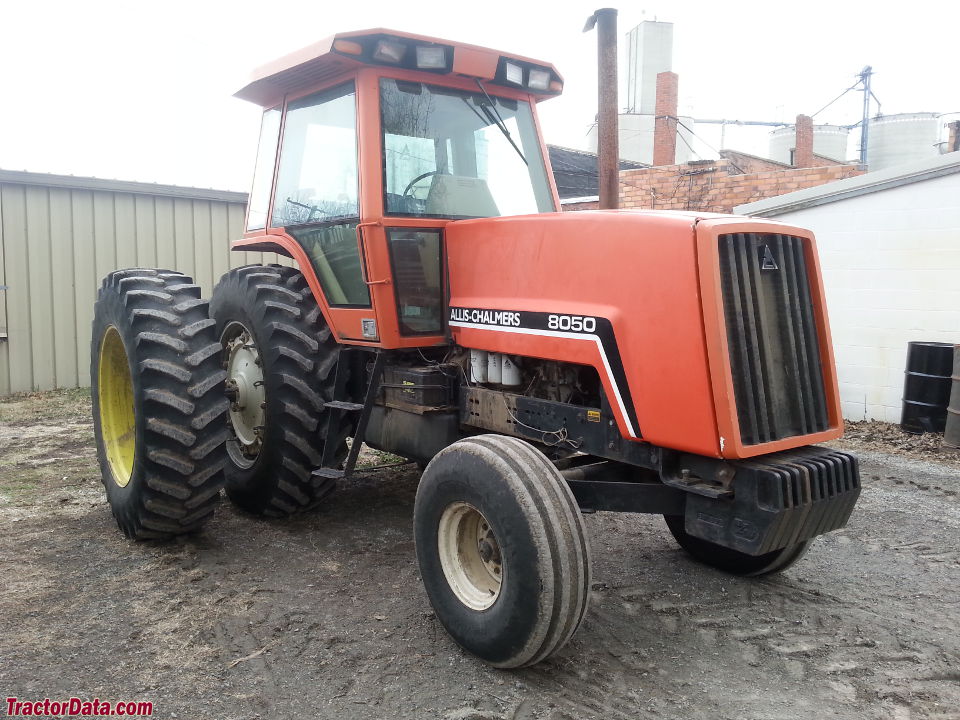

Allis Chalmers 8050 tractor photo
1982 - 1985
Row-Crop tractor
Previous model:Allis Chalmers 7060
Next model:Deutz-Allis 8050
Series next:Allis Chalmers 8070
Series back:Allis Chalmers 8030






Production:

Manufacturer:Allis Chalmers
Factory:West Allis, Wisconsin, USA
Total built:2,336
Original price (USD):$58,411


Allis Chalmers 8050 Engine:

   Allis Chalmers 7.0L 6-cyl diesel
full engine details ...


Capacity:

Fuel:60 gal [227.1 L]
 25 gal [94.6 L] (optional tank)
Rear diff.:66.8 qts [63.2 L]


3-Point Hitch:

Rear Type:III/II
Rear lift (at 24"/610mm):6680 lbs [3030 kg]
 8200 lbs [3719 kg] *Optional


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000
 1000*Optional


Dimensions & Tires:

2WD Wheelbase:106 inches [269 cm]
4WD Wheelbase:96 inches [243 cm]
Weight:15305 to 19380 pounds
Front tire:10.00-16
Rear tire:18.4-38
full dimensions and tires ...


8050 Serial Numbers:

Location:Above PTO shield
1981: 1001
1982: 1016
1983: 1924
1984: 2496
1985: 3187
Final: 3336

how to read serial numbers...



Allis Chalmers 8050 Power:

Drawbar (tested):131.44 hp [98.0 kW]
PTO (tested):152.40 hp [113.6 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:foot-button
Steering:hydrostatic power
Brakes:differential hydraulic wet discs
Cab:Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.


Hydraulics:

Type:closed-center load-sensitive
Valves:2 or 3
Pump flow:22 gpm [83.3 lpm]
 13.5 gpm [51.1 lpm] (transmission)
Total flow:45 gpm [170.3 lpm]
Steering flow:9.5 gpm [36.0 lpm]


Electrical:

Charging system:alternator
Charging amps:100


Battery:

Volts:12
