Allis Chalmers 8050 Transmission


Allis Chalmers 8050 tractor photo
1982 - 1985
8000 Series
Row-Crop tractor
7060
Series:803080508070
8050
Transmissions overview
20-speed partial power shift
12-speed Allis-Chalmers
Transmission
Transmission:Allis-Chalmers Power Director
Type:partial power shift
Gears:20 forward and 4 reverse
Oil capacity:29.6 qts
28.0 L
Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.
Speeds
With 18.4x38 rear tires.

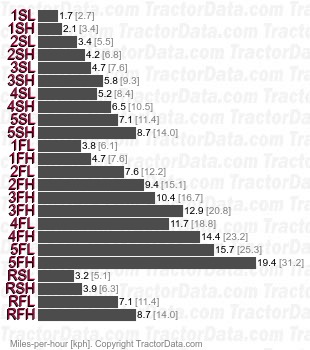

8050 Power Director partial power shift speeds

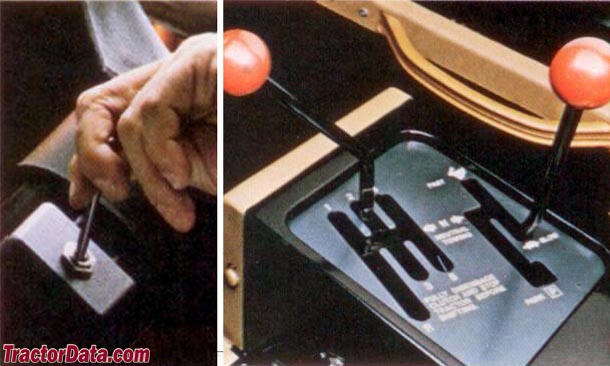

Allis Chalmers 8050 Power Director transmission photo
Transmission
Transmission:Power Shift
Type:Allis-Chalmers
Gears:12 forward and 2 reverse
Oil capacity:29.6 qts
28.0 L
Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.
Speeds
With 18.4x38 rear tires.

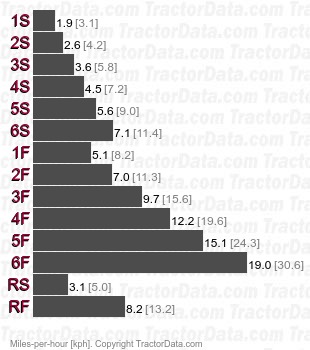

8050 Power Shift Allis-Chalmers speeds

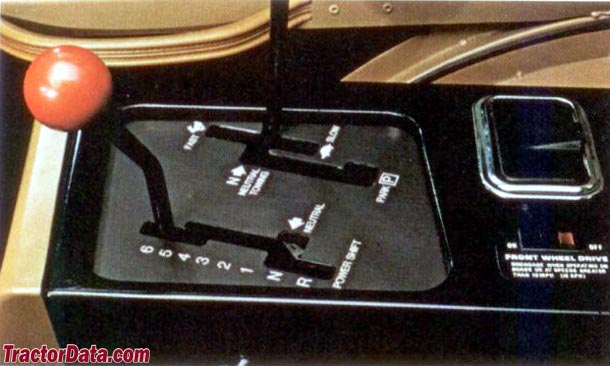

Allis Chalmers 8050 Power Shift transmission photo
