    Allis Chalmers 8030

    Allis Chalmers 8030 tractor photo  I&T Manual: Allis-Chalmers 8010, 8030, 8050, 8070
    I&T Shop Manual
    1982 - 1985
    Previous model:Allis Chalmers 7020
    Next model:Deutz-Allis 8030
    Larger:Allis Chalmers 8050
    Smaller:Allis Chalmers 8010






    Production:

    Manufacturer:Allis Chalmers
    Factory:West Allis, Wisconsin, USA
    Total built:2,328
    Original price (USD):$52,398


    Allis Chalmers 8030 Engine:

       Allis Chalmers 7.0L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:60 gal [227.1 L]
     25 gal [94.6 L] (optional tank)
    Rear diff.:66.8 qts [63.2 L]


    3-Point Hitch:

    Rear Type:III/II
    Rear lift (at 24"/610mm):6,680 lbs [3030 kg]
     8,200 lbs [3719 kg] (optional)


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000


    Dimensions & Tires:

    Wheelbase:106 inches [269 cm] (2WD)
     96 inches [243 cm] (4WD)
    Weight:14200 to 17100 pounds
    Front tire:10.00-16
    Rear tire:18.4-38
    full dimensions and tires ...


    8030 Serial Numbers:

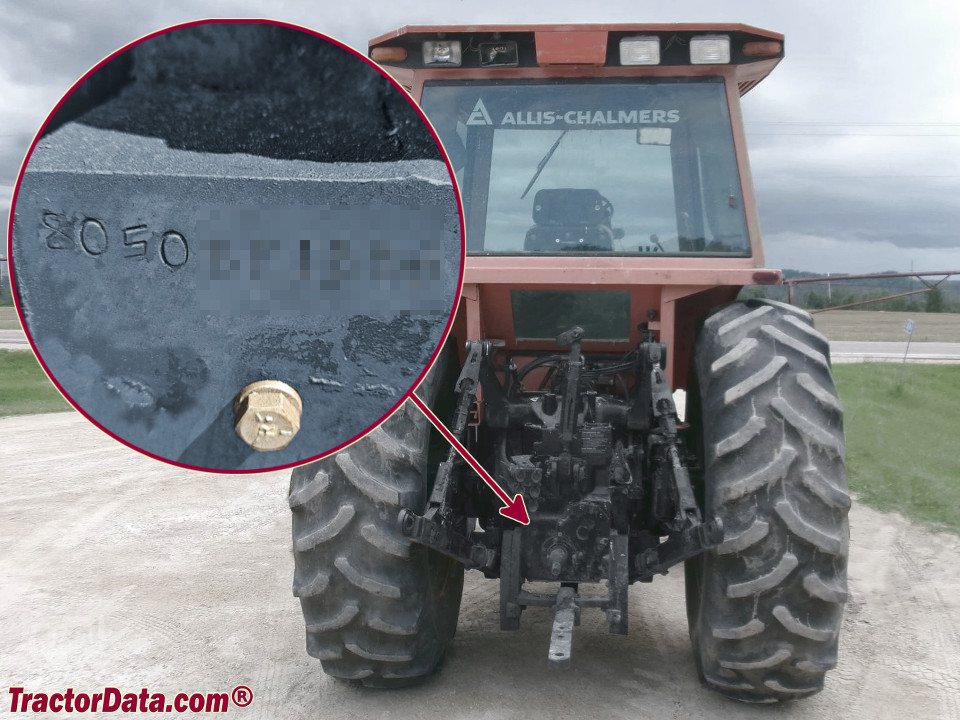

    Location:Above PTO shield
    1981: 1001
    1982: 1009
    1983: 2093
    1984: 2701
    1985: 3146
    Final: 3328

    how to read serial numbers...



    Allis Chalmers 8030 Power:

    Drawbar (tested):115.22 hp [85.9 kW]
    PTO (tested):133.75 hp [99.7 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:foot-button
    Steering:hydrostatic power
    Brakes:differential hydraulic wet discs
    Cab:Acousta cab standard with heat and air-conditioning. Optional radio and cassette tape player.


    Hydraulics:

    Type:closed-center load-sensitive
    Valves:2 or 3
    Pump flow:22 gpm [83.3 lpm]
     13.5 gpm [51.1 lpm] (transmission)
    Total flow:45 gpm [170.3 lpm]
    Steering flow:9.5 gpm [36.0 lpm]


    Electrical:

    Charging system:alternator
    Charging amps:100


    Battery:

    Volts:12
