Allis Chalmers 8030 Transmission


Allis Chalmers 8030 tractor photo
1982 - 1985
8000 Series
Row-Crop tractor
Series map:
8010
8030
8050
119.3hp
148.6hp
169.3hp
Transmissions overview
16-speed partial power shift
20-speed partial power shift
12-speed Allis-Chalmers
Transmission
TransmissionAllis-Chalmers Power Director
Typepartial power shift
Gears16 forward and 4 reverse
Oil capacity29.6 qts
28.0 L
Four gears (1-4) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.
Speeds
With 18.4x38 rear tires.

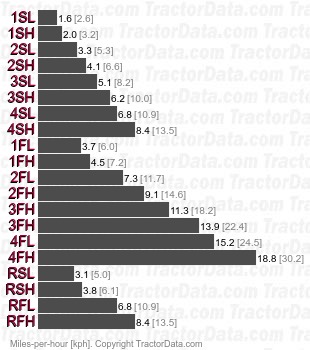

8030 Power Director partial power shift speeds
Transmission
TransmissionAllis-Chalmers Power Director
Typepartial power shift
Gears20 forward and 4 reverse
Oil capacity29.6 qts
28.0 L
Five gears (1-5) in two ranges (slow/fast) with a two-speed power shift (low/high) controlled by left-hand lever.
Speeds
With 18.4x38 rear tires.
8030 Power Director partial power shift speeds
Shift Pattern

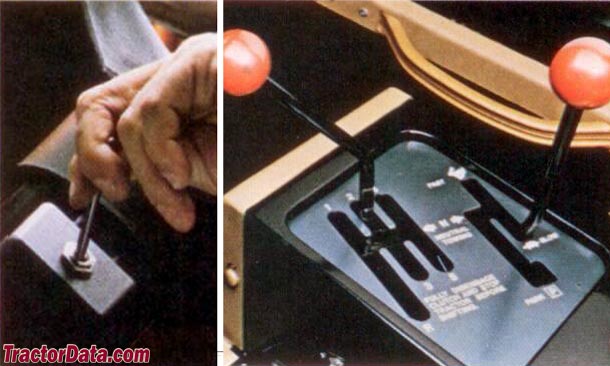

Allis Chalmers 8030 transmission controls
Transmission
TransmissionPower Shift
TypeAllis-Chalmers
Gears12 forward and 2 reverse
Oil capacity29.6 qts
28.0 L
Six power shift gears (1-6) in two ranges (slow/fast). Clutch must be used to shift range. Pressing the clutch pedal half-way automatically downshifts from 5th/6th to 4th gear.
Speeds
With 18.4x38 rear tires.

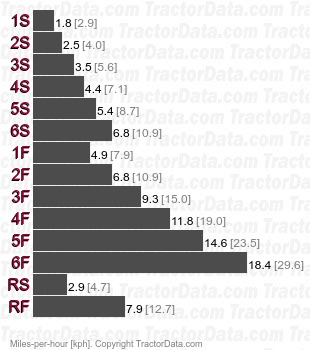

8030 Power Shift Allis-Chalmers speeds
Shift Pattern

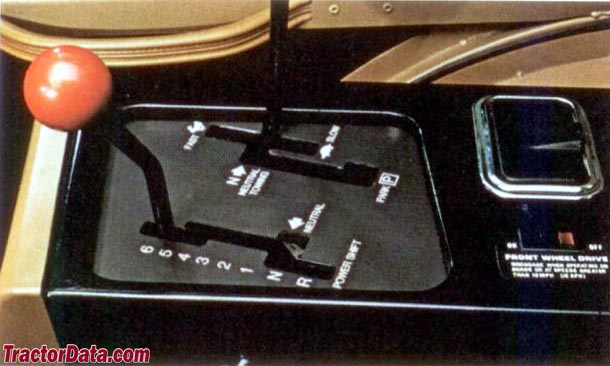

Allis Chalmers 8030 transmission controls
