    Allis Chalmers 7020 - transmission




    Allis Chalmers 7020 tractor photo I&T Manual: Allis-Chalmers D-21, Two-Ten, D-19, 180, 185, 190, 200, 7000 series
    I&T Shop Manual
    Model:7020
    Years:1978 - 1981
    Tractor type:Farm/Agricultural tractor
    Original price:$39,378
    more Allis Chalmers 7020 specifications...

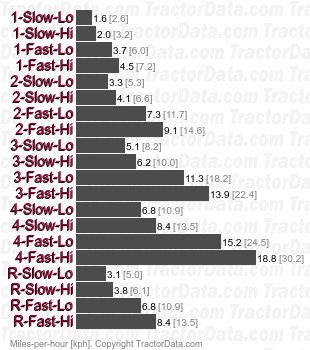

    Transmission:

    :Power Director
    Type:-unknown-
    Forward:16
    Reverse:4
    Oil capacity:29.6 qts [28.0 L]
    Speeds:With 18.4x38 rear tires.

    Gear
    1-Slow-Lo1.6mph [2.6kph]
    1-Slow-Hi2.0mph [3.2kph]
    1-Fast-Lo3.7mph [6.0kph]
    1-Fast-Hi4.5mph [7.2kph]
    2-Slow-Lo3.3mph [5.3kph]
    2-Slow-Hi4.1mph [6.6kph]
    2-Fast-Lo7.3mph [11.7kph]
    2-Fast-Hi9.1mph [14.6kph]
    3-Slow-Lo5.1mph [8.2kph]
    3-Slow-Hi6.2mph [10.0kph]
    3-Fast-Lo11.3mph [18.2kph]
    3-Fast-Hi13.9mph [22.4kph]
    4-Slow-Lo6.8mph [10.9kph]
    4-Slow-Hi8.4mph [13.5kph]
    4-Fast-Lo15.2mph [24.5kph]
    4-Fast-Hi18.8mph [30.2kph]
    R-Slow-Lo3.1mph [5.0kph]
    R-Slow-Hi3.8mph [6.1kph]
    R-Fast-Lo6.8mph [10.9kph]
    R-Fast-Hi8.4mph [13.5kph]

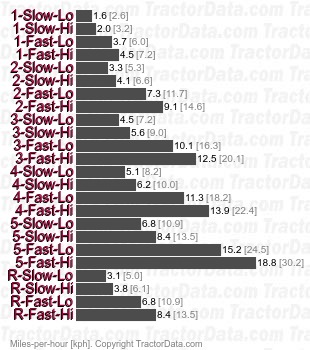

    Transmission:

    :Power Director
    Type:-unknown-
    Forward:20
    Reverse:4
    Oil capacity:29.6 qts [28.0 L]
    Speeds:With 18.4x38 rear tires.

    Gear
    1-Slow-Lo1.6mph [2.6kph]
    1-Slow-Hi2.0mph [3.2kph]
    1-Fast-Lo3.7mph [6.0kph]
    1-Fast-Hi4.5mph [7.2kph]
    2-Slow-Lo3.3mph [5.3kph]
    2-Slow-Hi4.1mph [6.6kph]
    2-Fast-Lo7.3mph [11.7kph]
    2-Fast-Hi9.1mph [14.6kph]
    3-Slow-Lo4.5mph [7.2kph]
    3-Slow-Hi5.6mph [9.0kph]
    3-Fast-Lo10.1mph [16.3kph]
    3-Fast-Hi12.5mph [20.1kph]
    4-Slow-Lo5.1mph [8.2kph]
    4-Slow-Hi6.2mph [10.0kph]
    4-Fast-Lo11.3mph [18.2kph]
    4-Fast-Hi13.9mph [22.4kph]
    5-Slow-Lo6.8mph [10.9kph]
    5-Slow-Hi8.4mph [13.5kph]
    5-Fast-Lo15.2mph [24.5kph]
    5-Fast-Hi18.8mph [30.2kph]
    R-Slow-Lo3.1mph [5.0kph]
    R-Slow-Hi3.8mph [6.1kph]
    R-Fast-Lo6.8mph [10.9kph]
    R-Fast-Hi8.4mph [13.5kph]

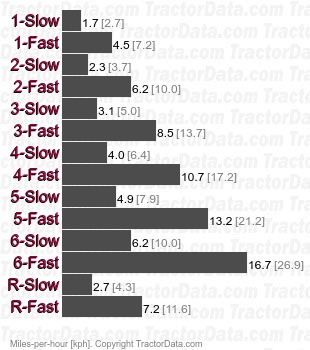

    Transmission:

    :Power Shift
    Type:-unknown-
    Forward:12
    Reverse:2
    Oil capacity:29.6 qts [28.0 L]
    Speeds:With 15.5x38 rear tires.

    Gear
    1-Slow1.7mph [2.7kph]
    1-Fast4.5mph [7.2kph]
    2-Slow2.3mph [3.7kph]
    2-Fast6.2mph [10.0kph]
    3-Slow3.1mph [5.0kph]
    3-Fast8.5mph [13.7kph]
    4-Slow4.0mph [6.4kph]
    4-Fast10.7mph [17.2kph]
    5-Slow4.9mph [7.9kph]
    5-Fast13.2mph [21.2kph]
    6-Slow6.2mph [10.0kph]
    6-Fast16.7mph [26.9kph]
    R-Slow2.7mph [4.3kph]
    R-Fast7.2mph [11.6kph]
