Allis Chalmers 7010 Transmission


Allis Chalmers 7010 tractor photo
1980 - 1981
7000 Series
Row-Crop tractor
Series map:
7010
7020
118.4hp*
146.0hp
Transmissions overview
16-speed partial power shift
20-speed partial power shift
12-speed partial power shift
Transmission
TransmissionAllis-Chalmers Power Director
Typepartial power shift
Gears16 forward and 4 reverse
Oil capacity29.6 qts
28.0 L
Four gears plus reverse with Slow and Fast ranges. Two-speed power shift (low/high) controlled by foot buttons.
Speeds
With 18.4x38 rear tires.

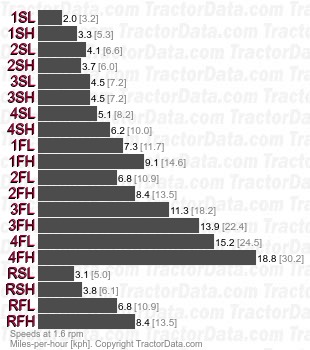

7010 Power Director partial power shift speeds
Transmission
TransmissionAllis-Chalmers Power Director
Typepartial power shift
Gears20 forward and 4 reverse
Oil capacity29.6 qts
28.0 L
Five gears in two ranges (slow/fast) with two-range power shift. Power shift controlled by foot buttons.
Speeds
With 18.4x38 rear tires.

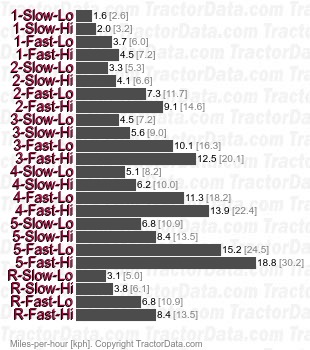

7010 Power Director partial power shift speeds
Transmission
TransmissionAllis-Chalmers Power Shift
Typepartial power shift
Gears12 forward and 2 reverse
Oil capacity29.6 qts
28.0 L
Six gears in two ranges. Power shift between gears in range.
Speeds
With 15.5x38 rear tires.

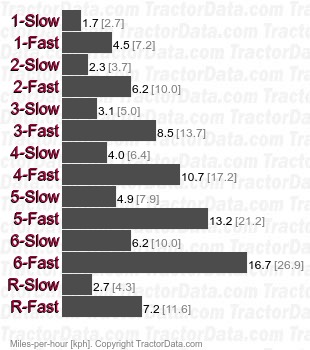

7010 Power Shift partial power shift speeds
