Allis Chalmers 7020 Tests


Allis Chalmers 7020 tractor photo
1978 - 1981
Row-Crop tractor
Series:701070207045
8030
Nebraska Tractor Test 1259

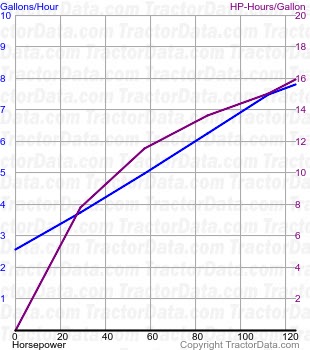

7020 fuel use from test 1259
Nebraska Tractor Test 1259
Diesel Power shift 2WD
October 10 - 21, 1977
Link: Nebraska Tractor Test 1259 file
PTO performance
Power at rated engine speed:123.79 hp
92.3 kW
Fuel use:7.8 gal/hour
29.5 l/hour
Power at rated PTO speed:123.50 hp
92.1 kW
Fuel use:7.7 gal/hour
29.1 l/hour
Drawbar performance
Max power:101.89 hp
76.0 kW
Fuel use:7.8 gal/hour
29.5 l/hour
Gear 1F used for power test.
Max pull:12,001 lbs
5443 kg
Gear 2S used for pull test.
Nebraska Tractor Test 1260

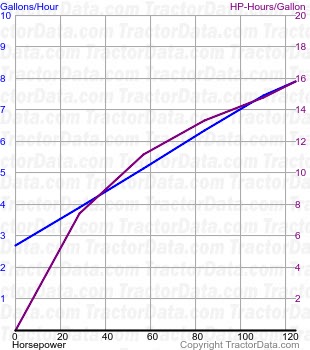

7020 fuel use from test 1260
Nebraska Tractor Test 1260
Diesel Power Director 2WD
October 10 - 21, 1977
Link: Nebraska Tractor Test 1260 file
PTO performance
Power at rated engine speed:123.85 hp
92.4 kW
Fuel use:7.8 gal/hour
29.5 l/hour
Power at rated PTO speed:125.51 hp
93.6 kW
Fuel use:7.8 gal/hour
29.5 l/hour
Drawbar performance
Max power:102.09 hp
76.1 kW
Fuel use:7.8 gal/hour
29.5 l/hour
Gear 4SL used for power test.
Max pull:11,964 lbs
5426 kg
Gear 2SL used for pull test.
