    Allis Chalmers 190

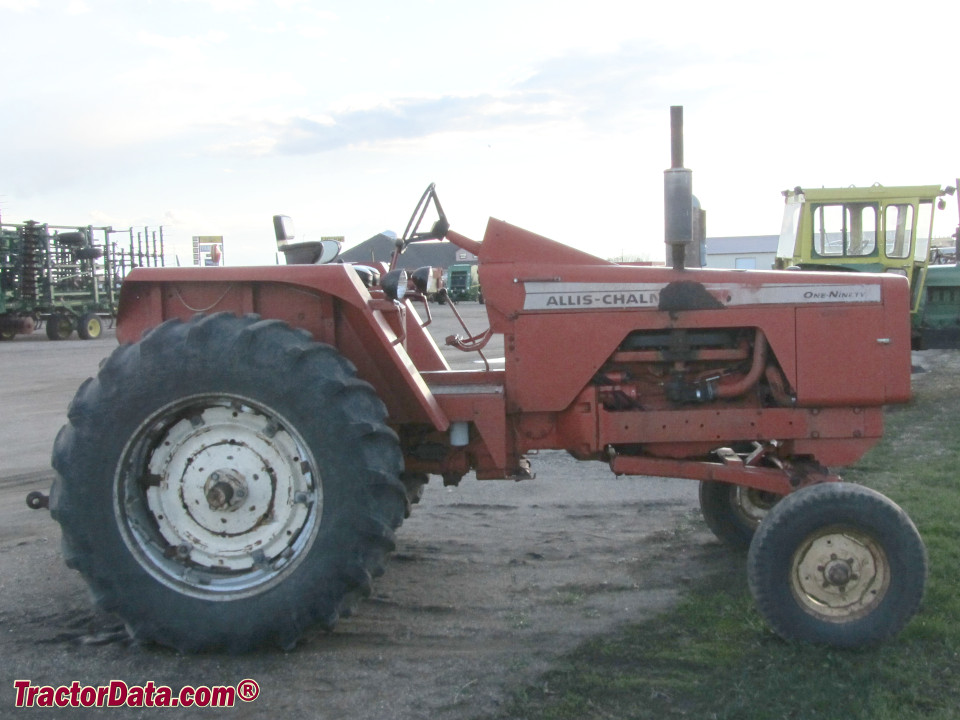

    Allis Chalmers 190 tractor photo  I&T Manual: Allis-Chalmers D-21, Two-Ten, D-19, 180, 185, 190, 200, 7000 series
    I&T Shop Manual
    1964 - 1972






    Production:

    Manufacturer:Allis Chalmers
    Original price (USD):$7,172


    Allis Chalmers 190 Engines:

       Allis Chalmers 4.3L 6-cyl gasoline
       Allis-Chalmers 4.9L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:48 gal [181.7 L]
    Hydraulic system:9 gal [34.1 L]


    3-Point Hitch:

    Rear Type:II


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPMs:540, 1000


    Dimensions & Tires:

    Wheelbase:105.75 inches [268 cm]
    Weight:7665 lbs [3476 kg]
    Front tire:7.50-16
    Rear tire:18.4-34
    full dimensions and tires ...


    190 Serial Numbers:

    Location:Torque housing
    1964: 1001
    1965: 2485
    1966: 8219
    1967: 13273
    1968: 19262
    1969: 23234
    1970: 25901
    1971: 29136
    1972: 31118

    how to read serial numbers...



    Allis Chalmers 190 Power:

    Drawbar (claimed):63.1 hp [47.1 kW]
    PTO (claimed):75.37 hp [56.2 kW]
    Drawbar (tested):65.3 hp [48.7 kW]
    PTO (tested):77.2 hp [57.6 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:power
    Brakes:band actuated disc


    Hydraulics:

    Type:open
    Capacity:9 gal [34.1 L]
    Pressure:2000 psi [137.9 bar]
    Pump flow:12 gpm [45.4 lpm]


    Belt Pulley:

    Diameter:9 inches [22 cm]
    Width:6.6 inches [16 cm]
    RPMs:1845
    Speed:4347 ft/min [1324.97 meters/min]


    Electrical:

    Ground:negative


    Battery:

    Number:1 (gas)
     2 (diesel)
    Volts:12
    Amp-hours:53 (gas/LP)
     95 (gas optional)
     190 (diesel)
