Tractors > John Deere > 2030

John Deere 2030 - tests

John Deere 2030 tractor photo
1971 - 1975   Generation II Series
Utility tractor
Next model:John Deere 2440
more John Deere 2030 specifications...






Nebraska Tractor Test 1084:

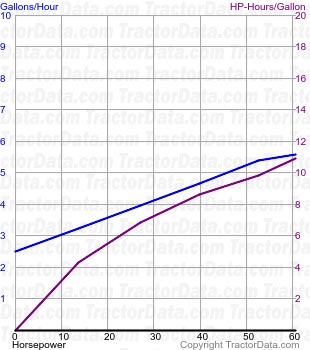

2030 fuel use from test 1084
Test Date:October 23 - November 3, 1971
Type:Gasoline 16-speed 2WD
PTO power (rated engine speed):60.34 hp [45.0 kW]
PTO fuel use (engine speed):5.5 gal/hour [20.8 l/hour]
PTO power (rated PTO speed):55.38 hp [41.3 kW]
PTO fuel use (PTO speed):4.8 gal/hour [18.2 l/hour]
Drawbar power (max):49.03 hp [36.6 kW]
Drawbar fuel use (max):5.7 gal/hour [21.6 l/hour]
Drawbar pull (max):6,340 lbs [2875 kg]
Max pull gear:3-Lo
Test report:PDF file


Nebraska Tractor Test 1085:

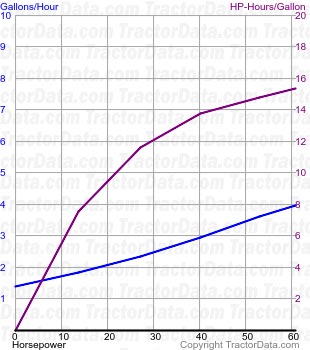

2030 fuel use from test 1085
Test Date:October 23 - November 4, 1971
Type:Diesel 16-speed 2WD
PTO power (rated engine speed):60.65 hp [45.2 kW]
PTO fuel use (engine speed):4.0 gal/hour [15.1 l/hour]
PTO power (rated PTO speed):55.23 hp [41.2 kW]
PTO fuel use (PTO speed):3.4 gal/hour [12.9 l/hour]
Drawbar power (max):50.42 hp [37.6 kW]
Drawbar fuel use (max):4.0 gal/hour [15.1 l/hour]
Drawbar pull (max):6,472 lbs [2935 kg]
Max pull gear:3-Lo
Test report:PDF file
