John Deere 2030
| | 1971 - 1975 |
| Generation II Series | | Utility tractor |
|
Series map:
2030
2630
68.0hp
78.2hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Factories | Dubuque, Iowa, USA
|
| | Mannheim, Baden-Württemberg, Germany
|
| Original price was $9,000 in 1975 |
| John Deere 2030 Power |
| Engine | 68 hp
50.7 kW
|
| Drawbar (claimed) | 51 hp
38.0 kW
|
| PTO (claimed) | 60.34 hp
45.0 kW
|
| Drawbar (tested) | 50.42 hp
37.6 kW
|
| PTO (tested) | 60.65 hp
45.2 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Steering | power assist
|
| Hydraulic wet disc brakes |
| Open operator station. Optional two-post ROPS with canopy. |
| Capacity |
| Fuel | 19.5 gal
73.8 L
|
| Hydraulic system | 10 gal
37.9 L
|
| Hydraulics |
| Type | closed center
|
| Capacity | 10 gal
37.9 L
|
| Pressure | 2250 psi
155.1 bar
|
| Pump flow | 6 gpm (transmission)
22.7 lpm
|
| | 8.5 gpm (remotes)
32.2 lpm
|
| | 18.5 gpm (optional)
70.0 lpm
|
| Total flow | 14.5 gpm
54.9 lpm
|
| | 24.5 gpmOptOptional
92.7 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| | independent OptOptional
|
| Rear PTO Type | 540
|
| | 540/1000
|
| Mid PTO | optional
|
| Mid PTO Type | 1000
|
| 2030 Serial Number Location |
 |
| Right side of grill or transmission case. |
| Electrical |
| Ground | negative
|
| Batteries | 1
|
| | 2
|
| Battery CCA | 370
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual 145 Loader (OMW21474) |
| Schlepper 2030 mit 71/68 PS published in 1972, by John Deere |
| 2030 Tractor with 71hp published by John Deere |
| John Deere 2030 Tractor (Serial No. 187301-up) (OM-R59805) |
| Tractors 1130, 2030, 2130, 3130 published in 1976, by John Deere |
| Product Information Manual published in 1975, by John Deere |
| Product Information Manual published in 1977, by John Deere |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on March 8, 2024 |
http://techpubs.deere.com/ - Official operator manuals for purchase or download from Deere.
|
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

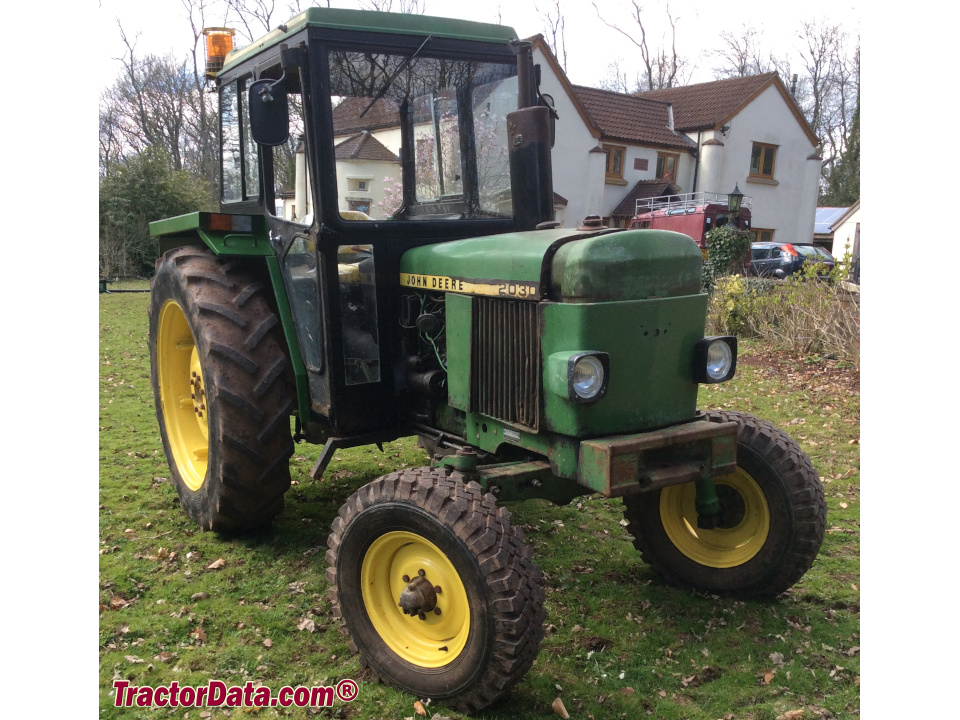

John Deere 2030 photos...
