Tractors > John Deere > 2630

John Deere 2630 Tests



John Deere 2630 tractor photo
1974 - 1975
Generation II Series
Utility tractor
Series map:
2030
2630
68.0hp
78.2hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 1157

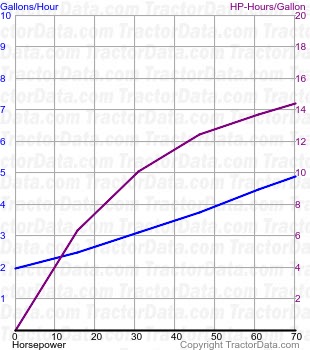

2630 fuel use from test 1157
Nebraska Tractor Test 1157
Diesel 16-speed 2WD
April 16 - 25, 1974
Link: Nebraska Tractor Test 1157 file
PTO performance
Power at rated engine speed70.37 hp
52.5 kW
Fuel use4.9 gal/hour
18.5 l/hour
Power at rated PTO speed69.02 hp
51.5 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power57.88 hp
43.2 kW
Gear 5-Hi used for power test.
Max pull6,470 lbs
2934 kg
Gear 5-Hi used for pull test.
