Craftsman 917.25554

Craftsman 917.25554 lawn tractor photo
LT 4000 Series
Lawn tractor
AYP built
DistributorCraftsman (a part of Sears)
Lawn tractor
Original price was $1,597 in 1991
Craftsman 917.25554 Engine
14HP Vanguard 480cc 2-cyl gasoline
Fuel tank2 gal
7.6 L
Engine details ...
Two-wheel drive
Manual steering
Open operator station.
Power Take-off (PTO)
Mid PTOindependent
Mid PTO Typepulley
Dimensions & Tires
Weight559 lbs
253 kg
Front tire15x6-6
Rear tire18x9.5-8
Full dimensions and tires ...

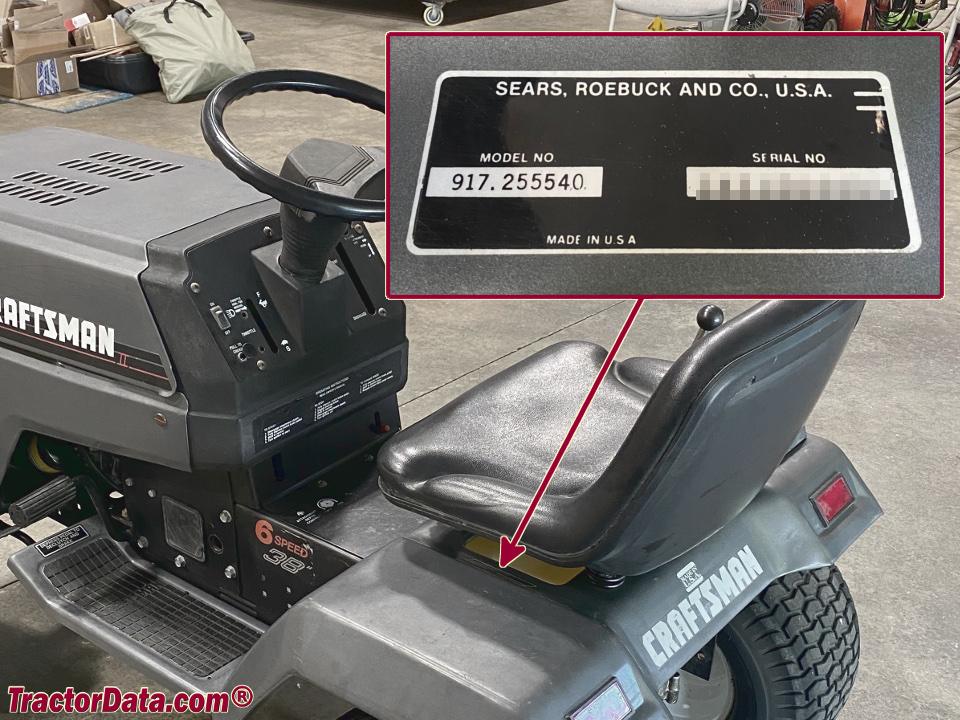

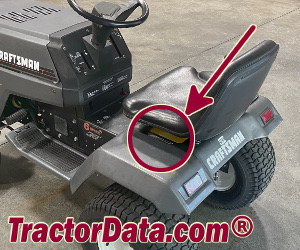

917.25554 Serial Number Location
Craftsman 917.25554 serial number location
Serial number plate on the rear fender deck, below the seat.
Charging amps16
Battery volts12
