Lawn Tractors > Craftsman > 917.25554

Craftsman 917.25554 Engine



Craftsman 917.25554 lawn tractor photo
1991
LT 4000 Series
Lawn tractor
AYP built
Engine Detail
Vanguard 303777
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement480 cc
29.3 ci
Power (gross)14 hp
10.4 kW
Air cleaner2.68x2.60
Starterelectric
Starter volts12
SparkplugChampion RJ-19LM
Sparkplug gap0.030 inches
0.762 mm
Engine Oil
917.25554 gasoline engine oil chart
Oil capacity1.75 qts
1.7 L
Oil change50 h

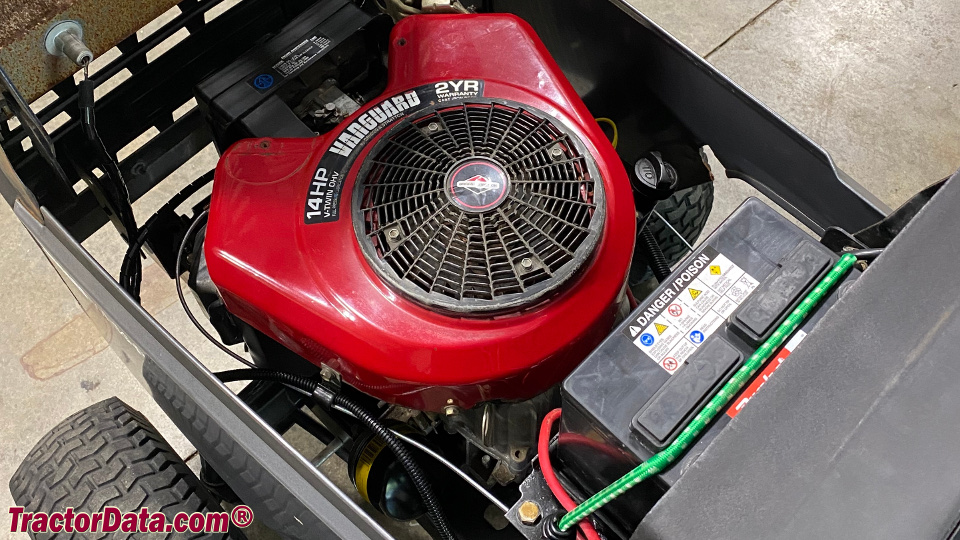

Craftsman 917.25554 Engine
Craftsman 917.25554 engine image
Image courtesy of Christopher Antonellis
