John Deere Z820A Engine

No photo available
2008 - 2009
Z-Trak PRO 800 Series
Zero-turn mower
Engine Detail
Kawasaki FH721
air-cooled vertical-shaft V-Twin
Displacement671 cc
41 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power (gross)25 hp
18.6 kW
Air cleanerdry
Idle RPM1700-3600
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

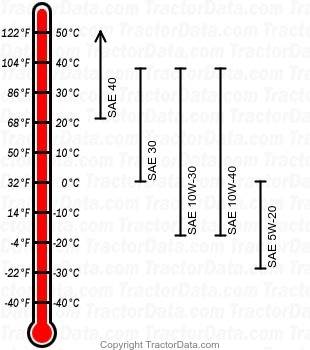

Z820A gasoline engine oil chart
Oil capacity1.6 qts
1.5 L
Oil change100 h
