John Deere Z830A Engine


John Deere Z830A lawn tractor photo
2008 - 2009
Z-Trak PRO 800 Series
Zero-turn mower
Series map:
Z820A
Z830A
Z840A
25.0hp
27.0hp
26.0hp
Engine Detail
Kawasaki FX751V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement852 cc
52 ci
Bore/Stroke3.33x3.00 inches
85 x 76 mm
Power (gross)27 hp
20.1 kW
Air cleanerdry
Compression8.2:1
Idle RPM1700-3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

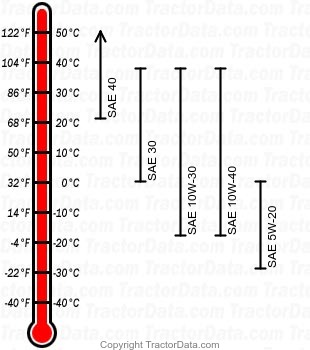

Z830A gasoline engine oil chart
Oil capacity2.0 qts
1.9 L
Oil change100 h
