Lawn Tractors > John Deere > Z810A

John Deere Z810A Engine



No photo available
2008 - 2009
Z-Trak PRO 800 Series
Zero-turn mower
Series map:
Z810A
Z820A
22.0hp
25.0hp
Engine Detail
Kawasaki FH661V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement671 cc
41 ci
Bore/Stroke2.96x2.99 inches
75 x 76 mm
Power (gross)22 hp
16.4 kW
Air cleanerdry
Compression8.1:1
Idle RPM1700-3600
Starterelectric
Starter volts12
Sparkplug gap0.030 inches
0.762 mm
Point gap0.012 inches
0.305 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.005 inches
0.127 mm
Engine Oil

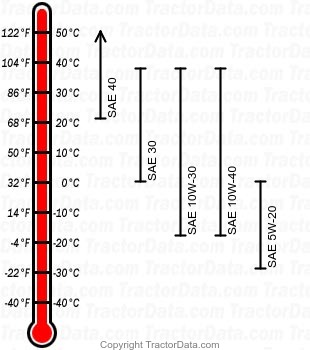

Z810A gasoline engine oil chart
Oil capacity1.6 qts
1.5 L
Oil change100 h
