John Deere X584

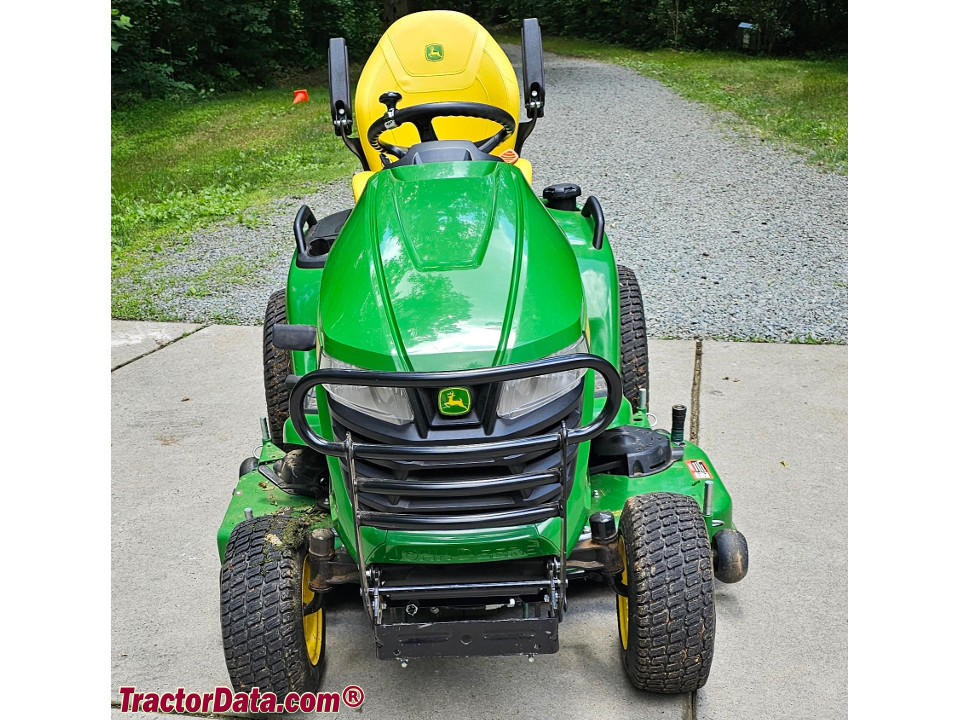

John Deere X584 lawn tractor photo
2016 -
X500 Series
Garden tractor
Series map:
ManufacturerJohn Deere
Garden tractor
Built in Horicon, Wisconsin, USA
Original price was $6,669 in 2017
John Deere X584 Engine
24HP Kawasaki 726cc 2-cyl gasoline
Fuel tank4.4 gal
16.7 L
Engine details ...
Two-wheel drive
Differential lockmechanical rear
Power four-wheel steering
Wet disc brakes
Open operator station. Canopy and weather cab optional.
No photos of the John Deere X584 are currently available. To submit yours, email it to Photos may only be used with the permission of the original photographer.
Tractor hitch
Typesleeve hitch OptOptional
Power Take-off (PTO)
Mid PTOindependent
Dimensions & Tires
Wheelbase51.2 inches
130 cm
Weight694 lbs
314 kg
Front tire16x6.5-8
Rear tire24x9.5-12
Full dimensions and tires ...
John Deere X584 attachments
48" mid-mount mower deck
54" mid-mount mower deck
Attachment details ...
X584 Serial Numbers
X584 Serial Location
John Deere X584 serial number location
Serial number on the right side of the tractor frame, above the front axle.
Charging systemflywheel alternator
Charging amps15
Battery CCA500
Battery volts12
X584 references literature
The Complete Range of Lawn Care Solutions published in 2016, by John Deere
Riding Lawn Tractors published in 2017, by John Deere
Riding Lawn Tractors published in 2019, by John Deere
Riding Lawn Tractors published in 2016, by John Deere
Lawn Care Solutions published in 2020, by John Deere
Riding Lawn Tractors published in 2021, by John Deere
