John Deere X584 Engine
|
|
| Engine Detail | |
| Kawasaki FS730V | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Original engine. The FS was used through the 2022 model year. | |
| Displacement | 726 cc 44.3 ci |
| Bore/Stroke | 3.07x2.99 inches 78 x 76 mm |
| Power (gross) | 24 hp 17.9 kW |
| Fuel system | carburetor |
| Air cleaner | dry with foam precleaner |
| Starter volts | 12 |

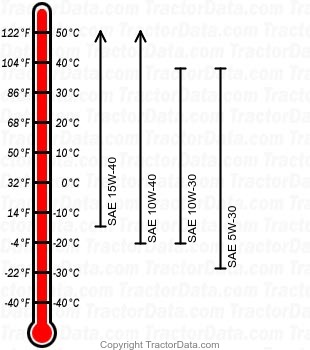

| Engine Oil | |
| |
| Oil capacity | 2.2 qts 2.1 L |
| Oil change | 100 h |
| Engine Detail | |
| Kawasaki FR730V | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| The FR series engine was used beginning with the 2023 model year production tractors. | |
| Displacement | 726 cc 44.3 ci |
| Bore/Stroke | 3.07x2.99 inches 78 x 76 mm |
| Power (gross) | 24 hp 17.9 kW |
| Fuel system | carburetor |
| Air cleaner | dry with foam precleaner |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Intake valve clearance | 0.005 inches (cold) 0.127 mm |
| Exhaust valve clearance | 0.005 inches (cold) 0.127 mm |
| Engine Oil | |
| |
| Oil capacity | 2.2 qts 2.1 L |
| Oil change | 100 h |
