Lawn Tractors > Simplicity > Broadmoor 17H

Simplicity Broadmoor 17H



Simplicity Broadmoor 17H tractor photo
2000 - 2001
Broadmoor Series
Lawn tractor
Series map:
Broadmoor 16VH
Broadmoor 17H
Broadmoor 18H
16.0hp
17.0hp
18.0hp
Production
ManufacturerSimplicity
Lawn tractor
Original price was $3,525 in 2000
Variants
1617HCsimilar AGCO model
Simplicity Broadmoor 17H Engine
17HP Vanguard 501cc 1-cyl gasoline
Fuel tank4 gal
15.1 L
Engine details ...
Simplicity Broadmoor 17H Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Photos

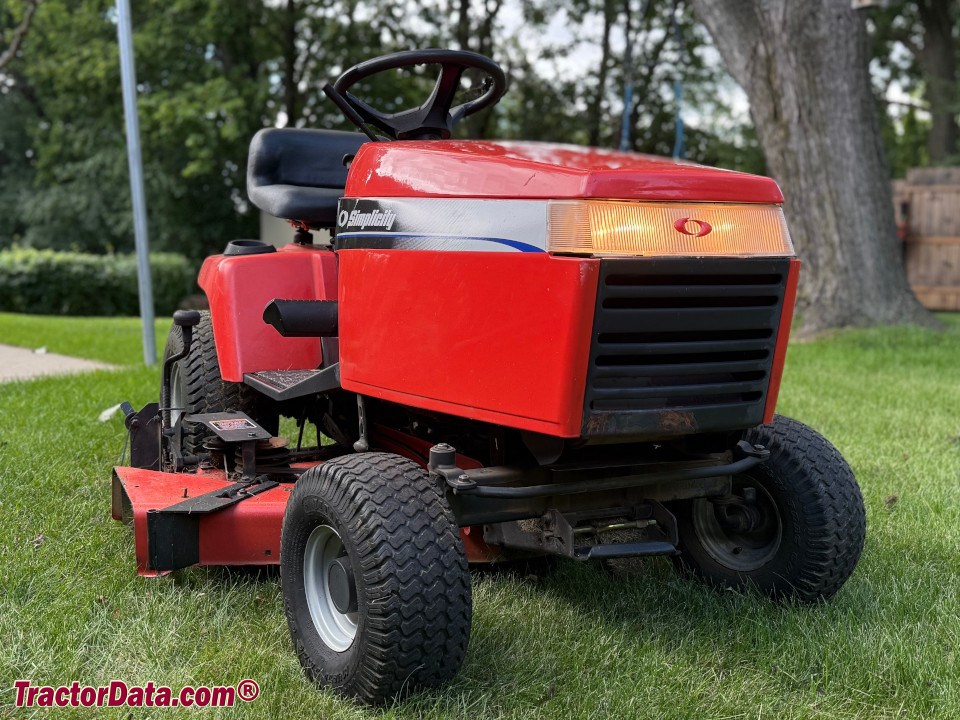

Simplicity Broadmoor 17H lawn tractor.
Simplicity Broadmoor 17H photos...
Power Take-off (PTO)
Mid PTOindependent
Clutchelectric
Mid PTO Typepulley
Dimensions & Tires
Wheelbase49 inches
124 cm
Weight560 lbs
254 kg
Front tire15x6.0-6
Rear tire20x10-8
Full dimensions and tires ...
Simplicity Broadmoor 17H attachments
44" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
References
Broadmoor 17H references literature
The way to a beautiful lawn. published in 2000, by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity
