Ariens S-14 931005 Engine

Ariens S-14 931005 lawn tractor photo
1973 - 1976
Model year
Garden tractor
Series:S-12S-14 931005S-16
Engine Detail
Kohler K321S
air-cooled horizontal-shaft
Displacement:512 cc
31.27 ci
Bore/Stroke:3.50x3.25 inches
89 x 83 mm
Power (gross):14 hp
10.4 kW
Fuel use:1.35 gal/hour
5.1 l/hour
Air cleaner:dry element with foam precleaner
Starter volts:12
Sparkplug gap:0.025 inches
0.635 mm
Engine Oil

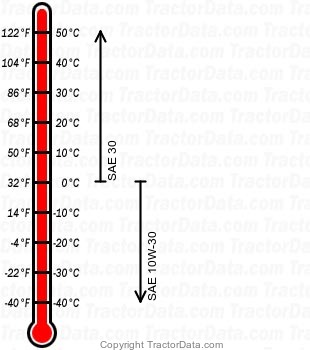

S-14 931005 gasoline engine oil chart
Oil capacity:2 qts
1.9 L
