Ariens S-16 931006 Engine
|
|
| Engine Detail | |
| Kohler K341S | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 588 cc 35.90 ci |
| Bore/Stroke | 3.75x3.25 inches 95 x 83 mm |
| Power (gross) | 16 hp 11.9 kW |
| Fuel use | 1.50 gal/hour 5.7 l/hour |
| Air cleaner | dry element with foam precleaner |
| Compression | 7.3:1 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.025 inches 0.635 mm |

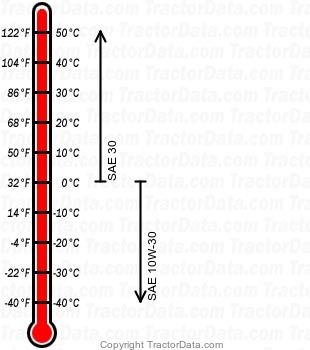

| Engine Oil | |
| |
| Oil capacity | 2 qts 1.9 L |
