Ariens S-12 931004 Engine
|
|
| Engine Detail | |
| Kohler K301S | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 476 cc 29.07 ci |
| Bore/Stroke | 3.375x3.25 inches 86 x 83 mm |
| Power (gross) | 12 hp 8.9 kW |
| Fuel use | 1 gal/hour 3.8 l/hour |
| Air cleaner | dry element with foam precleaner |
| Compression | 6.6:1 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.025 inches 0.635 mm |

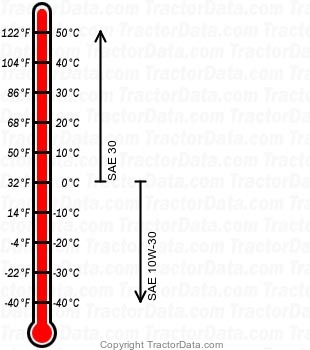

| Engine Oil | |
| |
| Oil capacity | 2 qts 1.9 L |
