Simplicity Landlord 20 DLX

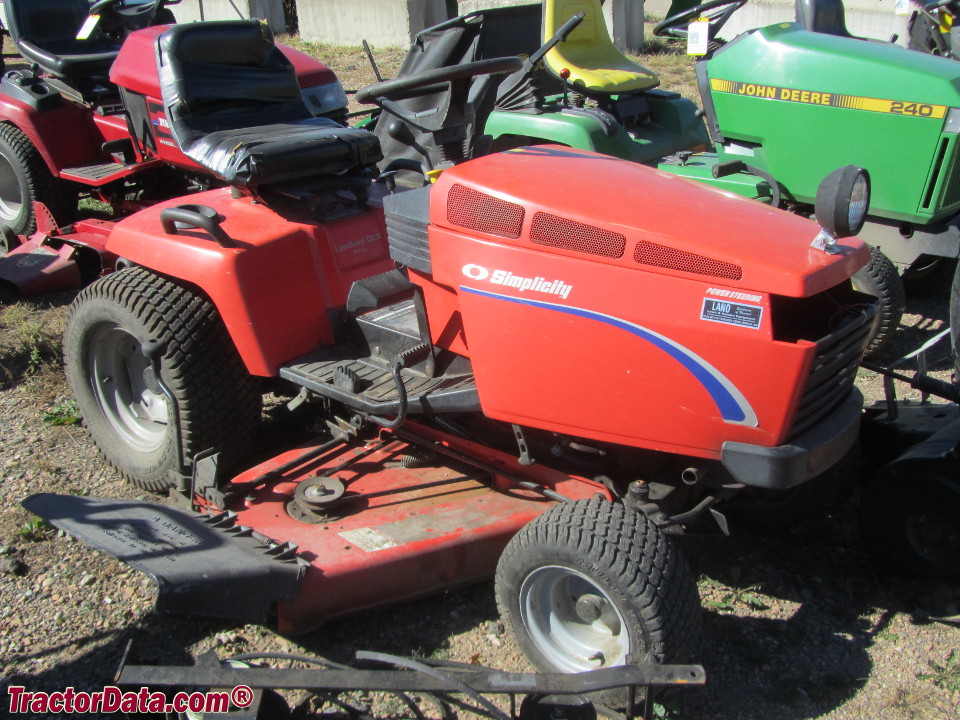

Simplicity Landlord 20 DLX lawn tractor photo
1999 - 2001
Landlord Series
Garden tractor
Series:Landlord 18 DLXLandlord 20 DLXLandlord 23 DLX
Prestige 20
Production
Manufacturer:Simplicity
Type:Garden tractor
Factory:Port Washington, Wisconsin, USA
Simplicity Landlord 20 DLX Engine
20HP Briggs & Stratton 569cc 2-cyl gasoline
Engine details ...
Mechanical
Chassis:4x2 2WD
Differential lock:mechanical rear
Steering:power
Cab:Open operator station.
Transmission:hydrostatic
Transmission details ...
Photos
No photos of the Simplicity Landlord 20 DLX are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:4.25 gal
16.1 L
Tractor hitch
Type:sleeve hitch (optional)
Power Take-off (PTO)
Front PTO:independent
Clutch:electro-magnetic
Dimensions & Tires
Wheelbase:52.25 inches
132 cm
Weight:560 lbs
254 kg
Front tire:16x6.50-8
Rear tire:23x10.50-12
Full dimensions and tires ...
Simplicity Landlord 20 DLX attachments
50" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:16
Battery
Number:1
Cold-cranking amps:340
Volts:12
