Lawn Tractors > Simplicity > Broadmoor 5010 1690007

Simplicity Broadmoor 5010 1690007

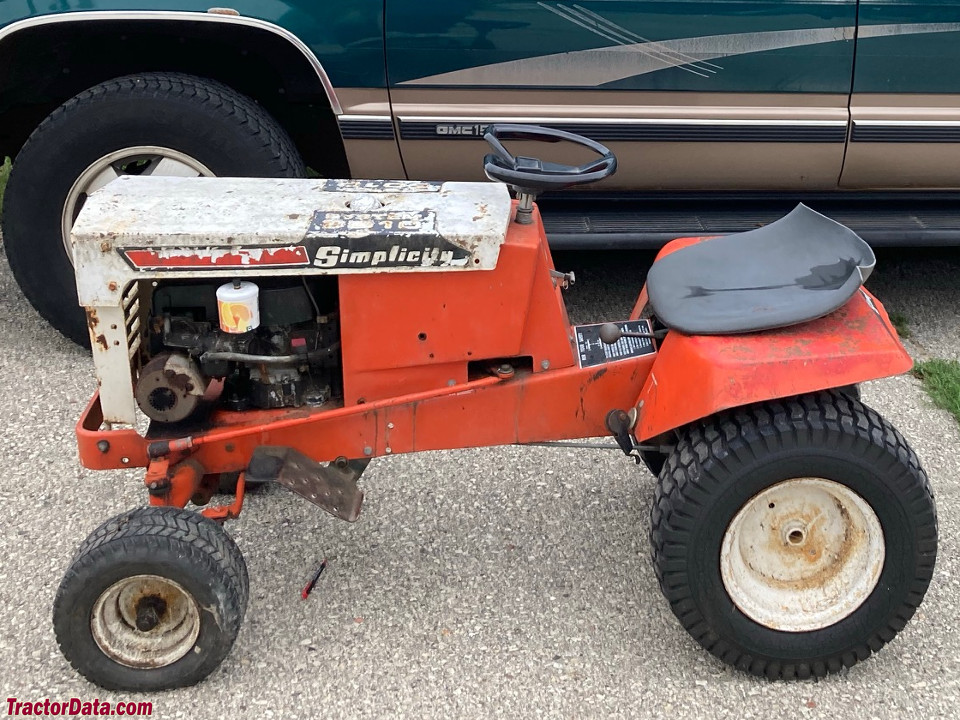

Simplicity Broadmoor 5010 1690007 lawn tractor photo
1974 - 1976
Broadmoor Series
Garden tractor
Series map:
Broadmoor 5008
Broadmoor 5010
8.0hp
10.0hp
Production
ManufacturerSimplicity (a part of Allis Chalmers)
Garden tractor
Built in Port Washington, Wisconsin, USA
Variants
16900075010
16901185010 LTD
610similar Allis Chalmers model
Simplicity Broadmoor 5010 Engine
10HP Briggs & Stratton 399cc 1-cyl gasoline
Fuel tank0.875 gal
3.3 L
Engine details ...
Simplicity Broadmoor 5010 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Steeringmanual
Mechanical band brakes
Open operator station.
Photos
Simplicity Broadmoor 5010
Simplicity Broadmoor 5010 photos...
Power Take-off (PTO)
Front PTOindependent
Clutchmechanical
Dimensions & Tires
Wheelbase41.5 inches
105 cm
Weight400 lbs
181 kg
Front tire5.30/4.50-6
Rear tire18x9.50-8
Full dimensions and tires ...
Simplicity Broadmoor 5010 attachments
36" mid-mount mower deck
42" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
Battery AH45
