Simplicity Broadmoor 5008 1690008

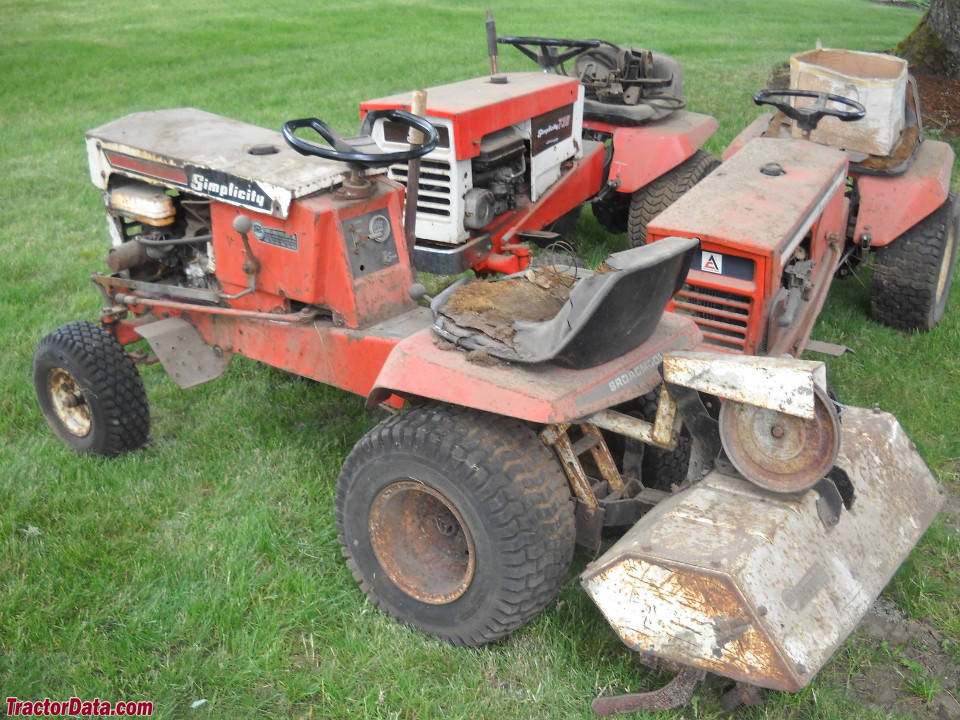

Simplicity Broadmoor 5008 1690008 lawn tractor photo
1974 - 1976
Broadmoor Series
Garden tractor
Series map:
Broadmoor 5008
Broadmoor 5010
8.0hp
10.0hp
Production
ManufacturerSimplicity
Garden tractor
The 5008 Broadmoor carried Simplicity model number 1690008.
Variants
608similar Allis Chalmers model
Simplicity Broadmoor 5008 Engine
8HP Briggs & Stratton 318cc 1-cyl gasoline
Fuel tank0.875 gal
3.3 L
Engine details ...
Simplicity Broadmoor 5008 Transmission
3-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Steeringmanual
External band brakes
Open operator station.
Photos
Simplicity Broadmoor 5008
Simplicity Broadmoor 5008 photos...
Dimensions & Tires
Wheelbase42.65 inches
108 cm
Weight336 to 423 pounds
Front tire5.30/4.50-6
Rear tire18x9.50-8
Full dimensions and tires ...
Simplicity Broadmoor 5008 attachments
36" mid-mount mower deck
snowblower
blade
Attachment details ...
Electrical
Groundnegative
Battery volts12
